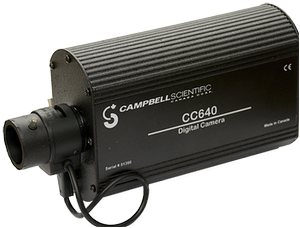

CC640

Ordering Information

Measurement and Control Products for WEATHER

Measurement and Control Products for WATER

Measurement and Control Products for ENERGY

Measurement and Control Products for MACHINES

Measurement and Control Products for STRUCTURES

Measurement and Control Products for EARTH

Ask a Question

Retired Product

Overview

Specifications

Compatibility

Ordering

Support

Image Gallery

This product is no longer available and has been replaced by: CC5MPX. Some accessories, replacement parts, or services may still be available.

Sections: Other Accessories

This product is currently unavailable for orders.

Other Accessories (hide details)
1.	18549	CC5MPX, CC640, or PWD22 Mounting Kit
	The 18549 mounts the 18543 enclosure to a CM202-series crossarm.
2.	CABLE5CBL-L	5-Conductor 22AWG Cable w/Drain
	The CABLE5CBL-L is recommended for connecting the CC640 with an MD485 (see below). This 22 AWG, five-conductor cable has a Santoprene® jacket and an aluminum mylar shield.
	CABLE5CBL-L Options
	-L	ft per cable
	Cable Termination Options
	-PT	-PT w/Tinned Wires
	-PW	-PW w/Pre-Wire Connector
3.	CABLE3CBL-L	3-Conductor 22AWG Cable w/Drain
	The CABLE3CBL-L is used for power and pulse connections. This 22-AWG, three-conductor cable has a Santoprene® jacket and an aluminum mylar shield.
	CABLE3CBL-L Options
	-L	ft per cable
	Cable Termination Options
	-PT	-PT w/Tinned Wires
	-PW	-PW w/Pre-Wire Connector
4.	COMCBL1-L	9-Pin Male Weatherproof Cable w/Pigtails
	This RS-232 cable terminates in pigtails for connection to the COM ports on a CR1000 or CR3000 datalogger. When the 19504 kit (see below) is used, this cable can attach to either the datalogger's RS-232 port or CS I/O port.
	Cable Length
	-L	ft per cable
5.	MD485	RS-485 Multidrop Interface
	The MD485 is an intelligent RS-485 interface that increases the distance allowed between the CC640 and the datalogger.
	Temperature Ranges
	-ST	-ST -25 to +50C
	-XT	-XT -55 to +85C
	Warranty Lengths
	-SW	-SW Standard 1yr Warranty
	-XW	-XW 4yr Warr Extension
6.	15966	Wall Charger 12Vdc 800mA Output, 100-240Vac 50-60Hz w/Barrel Plug, 6ft Cable
	The 15966 is typically used when an MD485 is at the PC where ac power is available. This ac/dc transformer accepts inputs from 90 to 260 Vac @ 47 to 63 Hz, then outputs 12 Vdc @ 880 mA for use by the MD485.
7.	14291	Field Power Cable 12Vdc Plug to Pigtail, 2ft
	At the datalogger site, the MD485 is powered by the datalogger. Older dataloggers or dataloggers that are using the RS-232 port to communicate with the MD485 require the 14291 Field Power Cable to power the MD485 via the datalogger.
8.	5563	Surge Protector Kit for 4-Wire Modem w/Ground Foot
	This surge protector help suppress electrical transients that may be carried along a 4-wire transmission line.
9.	6536	Surge Protector, Bourns 4-Wire Base Kit, #7040- 02-C
	When used with the MD485, the 6536 4-Wire Surge Protector helps suppress electrical transients that may be carried along the transmission line. The 6536 includes a Joslyn box to cover the connections.
