Dataloggers & Data Acquisition Systems
Also known as Data Loggers, Data Recorders, & RTUs
CR510 Basic Datalogger
CR510-2M Basic Datalogger w/2M Additional Memory
CR10X Datalogger for Measurement & Control
CR10X-2M Measurement & Control Datalogger w/2 M Additional Memory & Wiring Panel
CR23X Micrologger® for Data Acquistion
CR23X-4M Micrologger®
CR9000 Measurement & Control System
CR9000C Measurement & Control System
CR500 Basic Datalogger
CR10 Measurement and Control System
21X Micrologger®
21XL Micrologger® with Rechargeable Battery Base
BDR301 Basic Data Recorder
BDR320 Basic Data Recorder
CR21 Micrologger®
CR5 Measurement & Control System
Resources and Links
About Dataloggers & Data Acquisition Systems

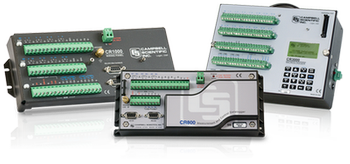

Campbell Scientific dataloggers are at the center of our rugged, reliable data acquisition systems. Our dataloggers share similar measurement and programming capabilities; selection of the appropriate datalogger depends mainly on the type, number, precision, and speed of measurements required.
Multiplexers and/or SDM devices may be added to augment measurement and control capabilities that include:
- measuring most sensors
- providing non-volatile data storage and on-board battery-backed clock (excludes CR7)
- on-board data processing
- initiating measurement and control functions based on time or event
- controlling external devices such as pumps, motors, alarms, freezers, valves, etc.
- using our PC support software or keyboard/display to program
- operating independently of ac power, computers, and human interaction
- consuming minimal power from a 12 Vdc source
- interfacing with on-site and telecommunication devices such as telephone modems (including cellular and voice-synthesized), short haul modems, radio transceivers, satellite transmitters, and ethernet interfaces
- operating temperature range of -25° to 50ºC; optional extended ranges are available
FAQs for
Dataloggers, which may also be referred to as Measurement and Control Units (Systems) or Microloggers, are the heart of a data acquisition system. They measure sensors at a specific scan rate, process data, store the data, and initiate telecommunications. Our dataloggers also have control capabilities allowing them to respond to specific site conditions by opening flood gates, turning fans off/on, etc.
The number of sensors that can be measured is determined by the sensor(s) and the datalogger(s). See the sensor's operator's manual to determine the channels each sensor uses. Review the small datalogger comparison chart and the large datalogger comparison chart for the number of analog channels, pulse counting channels, switched excitation channels, digital ports, and continuous analog ports provided by each datalogger.
The official definition of SDI-12 is Serial Data Interface at 1200 baud. Having stated that, SDI-12 is a protocol that was developed within the water resources field to make it easier to determine if a sensor and a datalogger were compatible. Instead of having to work through the specifications of the datalogger and the sensor for output, input, excitation, wiring, power, programming, etc., all SDI-12 sensors would have just three wires—a serial data line, a ground line, and a 12 V power line.
The CR510, CR500, CR10X, CR23X, CR800, CR850, CR3000, and CR1000 can be used for Modbus applications.
The CR510, CR500, and CR10X require a special operating system. Purchase an operating system with the Modbus protocol, and download it to the datalogger using CSOS downloading software or the DevConfig Utility.
Modbus protocol is standard in the CR23X, CR800, CR850, CR3000, and CR1000.
