HUGHES9502 Antenna Mounting Kit
30455
OrderableHUGHES9502 Antenna Mounting Kit
Overview

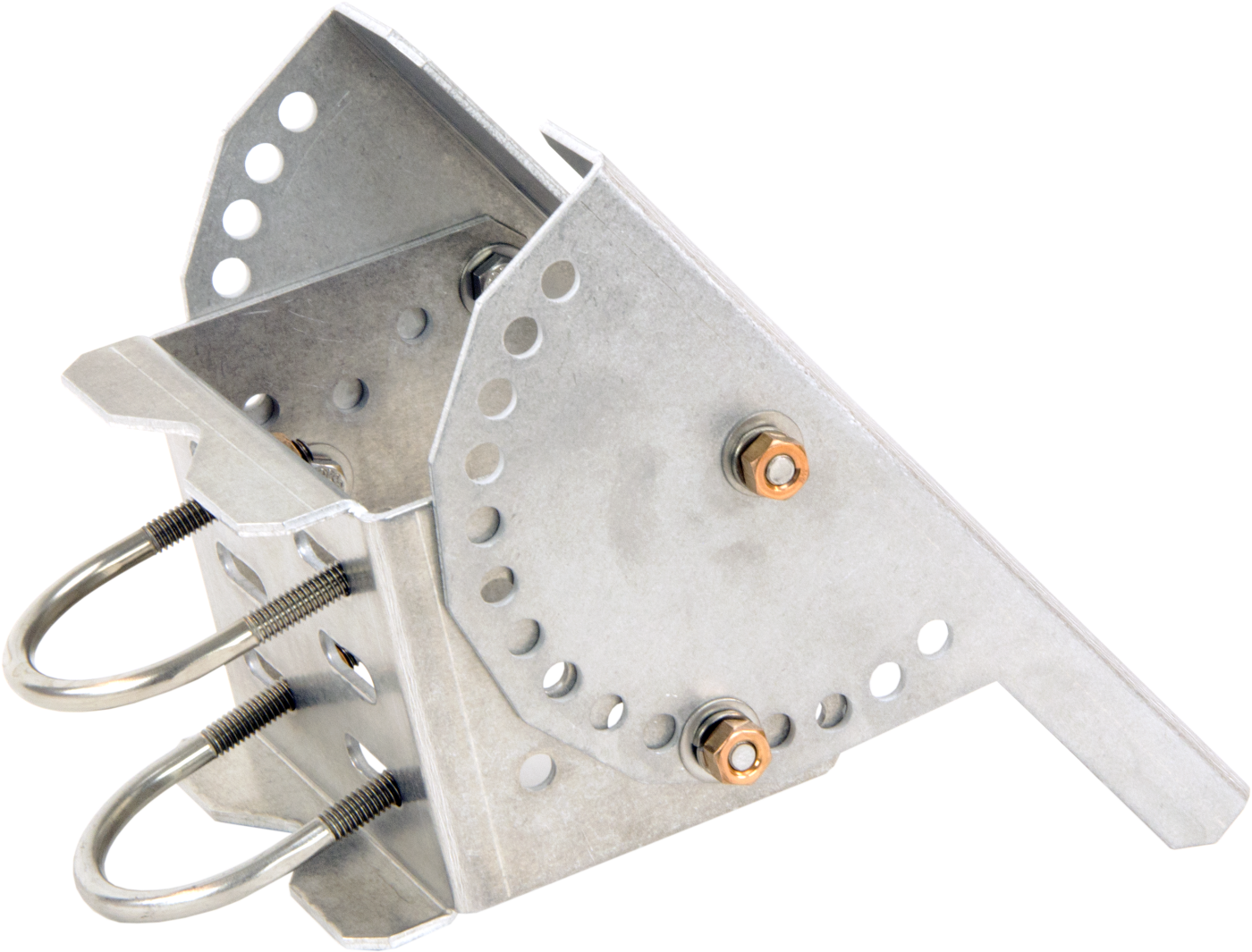

The 30455 is a mounting bracket kit for the flat, directional antenna provided with the HUGHES9502 Inmarsat BGAN IP Satellite terminal. The 30455 Antenna Mounting Kit is commonly used with the 30456 Terminal Mounting Kit. Both of these kits are included with the HUGHES9502 and the 31433 Mounting and Cable Kit.
Specifications
- Tilt Adjustment
- Vertical to horizontal with 2.5° resolution
- Material
- Aluminum bracket (clear anodize), stainless-steel hardware, and silicone bronze nuts
- U-bolts
- 5/16-18 x 2.125 in. fits 2.54 to 5.33 cm (1.0 to 2.1 in.) OD mast
- Dimensions
- 22.86 x 17.02 x 12.07 cm
(9.0 x 6.7 x 4.75 in.)
- Weight
- 884.51 g
(1.95 lb)
