30741

Iridium Fixed-Mast Antenna
30741

30741

Orderable

Iridium Fixed-Mast Antenna

Model:
30741
Item Number:
30741
Warranty:
1 year

Overview

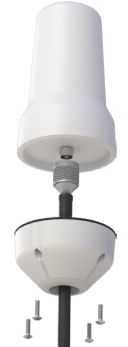

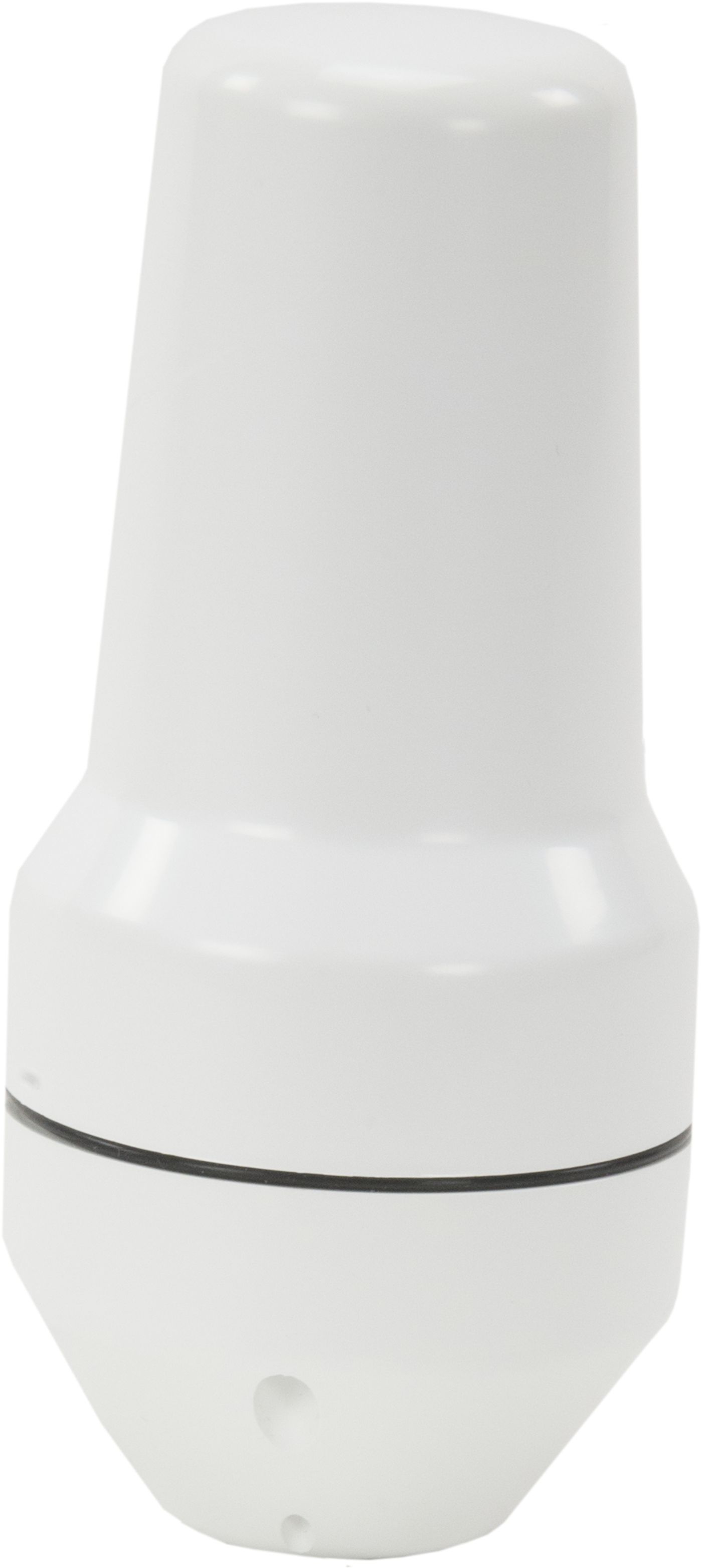

This antenna is an Iridium-frequency pole-mount antenna designed for fixed base station and maritime applications. It works with all Iridium-based voice and data communications devices including the Iridium 9522B. Its weatherproof package is designed to withstand exposure to extreme temperatures, rain, snow, and sun. The antenna conveniently mounts to any 3/4" pipe thread, which includes the 30626 and 7623 mounts offered by Campbell Scientific. The antenna cable connection is inside the antenna and protected from harsh environments.

Key Advantages

For Iridium-Based Communications Devices
Offers weatherproof packaging

Specifications

Connector
TNC female
Mount Type
0.75 in. IPS thread
Finish
Weatherable polymer white
Operating Temperature
-40° to +85°C
Altitude
6.10 km

(20,000 ft)

Impedance
50 ohm
VSWR
< 2.0:1
Frequency
1616 to 1626 MHz
Polarization
Right-hand circular
Axial Ratio
3 dB

(max)

Power Handling
1 W
Radiation Pattern
-0.25 dBic
75 < Zenith < 82
Dimensions
16.3 x 7.6 cm

(6.4 in x 3.0 in.)

Weight
312 g

(11 oz)
