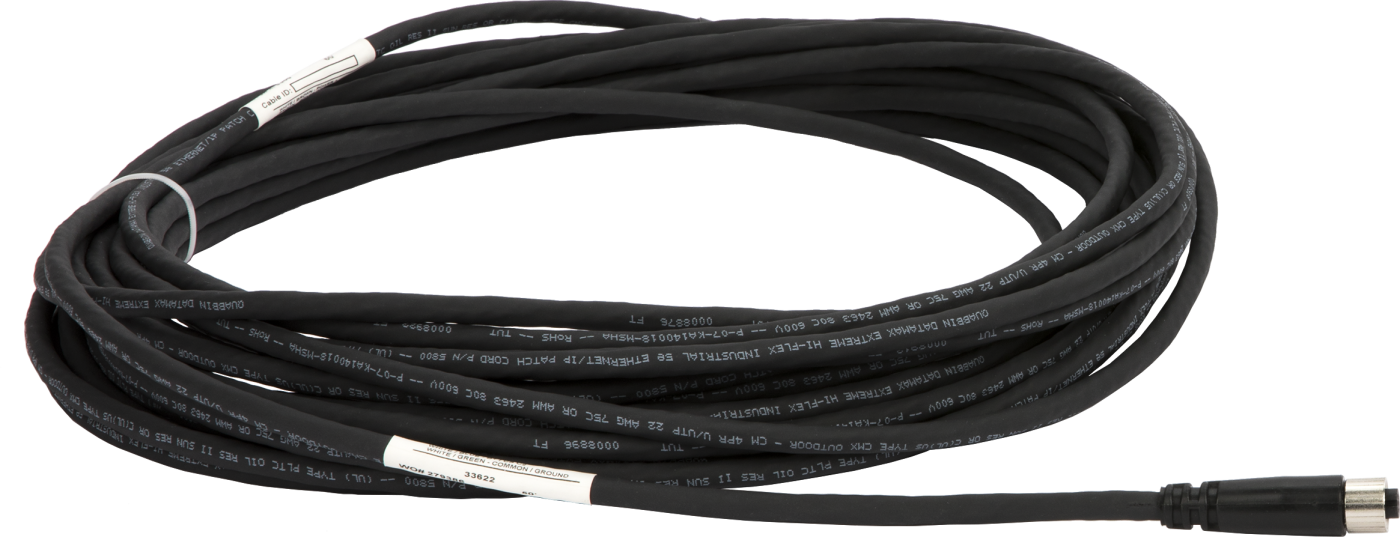

RetiredCS240DM Cable with Pigtail, 50 ft (15 m)
Pricing
- Model:
- 33622
- Item Number:
- 33622
- Warranty:
- 1 Year
Overview
The CS240DM cable is used for differentially transmitting data and power (POE) over twisted pair to the CS240DM Pt-1000 Class A, Back of Module Temperature Sensor with Digital Modbus RS-485 Output. The cable is a premium industrial Ethernet cable with several special attributes. Characteristic impedance is controlled for each twisted pair, making it suitable for maintaining high signal fidelity on the RS-485 signals with minimal signal reflections and excellent noise rejection. Jacket material is designed for outdoor use including UV exposure resistance and temperature performance of -40 to +75°C. Agency approvals include UL AWM Style 2463 (80C, 600V) and NEC/CEC (UL) CMX OUTDOOR. The cable has a high-flex construction with a jacket that can be pulled in conduit. It is also resistant to weld spatter and oil.
The 33622 includes a connector on one side of the cable for mating 15.24 m (50 ft) of 33117 Ethernet cable to a CS240DM Pt-1000 Class A, Back of Module Temperature Sensor with Digital Modbus RS-485 Output. The other side of the cable is pigtailed and tinned.
Technical Description
Wiring Diagram
| Pin | Wire Color | Function |
|---|---|---|
| 3 | Blue | RS-485 A/A' [-] |
| 2 | White/Blue |
RS-485 B/B' [+] |
| 4 | Brown |
5 to 30 Vdc |
| 1 | White/Brown |
Power Ground |
| 5 | Green |
Modbus Common |
Benefits
- NEC, UL, and CEC OUTDOOR rated, premium industrial grade
- Outdoor rated with excellent UV, temperature, and voltage ratings
- Differentially transmitted data with excellent noise rejection
- High-flex construction that can be pulled through conduit
- Suitable for POE
- Fire, cutting/machining oil, and weld splatter resistant
Specifications
- Maximum Temperature Rating
- 75°C and 80°C
(jacket 105°C; oil 75°C)
- Minimum Temperature Rating
- -40°C
- Conductor Material
- 22 AWG 19/0.0058 stranded tinned copper
- Insulation Material
- High-density polyethylene 0.254 mm (0.01 in.) nominal wall thickness
- Pairs
- Color-coded singles twisted into pairs
WHITE/BLUE X BLUE WHITE/ORANGE X ORANGE WHITE/GREEN X GREEN WHITE/BROWN X BROWN
- Cable Type
- 4 twisted pairs twisted together and wrapped with clear polyester tape to form a cable core
- Jacket Material
- Thermoplastic elastomer, 1.07 mm (0.042 in.) nominal wall thickness
(pressure)
- Voltage Rating
- 600 V
(maximum) for 100 m (328.08 ft ) of cable
- DC Resistance
- 6.0 Ω
(maximum) for 100 m (328.08 ft ) of cable
- Impedance
- 100 ± 15 Ω 1 to 100 MHz
for 100 m (328.08 ft ) of cable
- Impedance
- 100 ± 20 Ω 100 to 350 MHz
for 100 m (328.08 ft ) of cable
- Nominal Mutual Capacitance
- 13.5 PF/FT. at 1 MHz
- Approvals
- UL AWM 2463 (80C 600V)
- Approvals
- NEC (UL) TYPE PLTC
- Approvals
- NEC (UL) TYPE CMX OUTDOOR – CM
- Approvals
- CEC C(UL) TYPE CMX OUTDOOR – CM
- Approvals
- PENNSYLVANIA D.E.P. – MSHA
- Compliance Information
- POE compliant (802.3af) to 100 meters when installed per recommendations in TIA TSB-184.
- Compliance Information
- Cable will meet CAT5e channel requirements to 100 meter length.
- Compliance Information
- RoHS compliant materials
- Conductor Diameter
- 0.71 mm
(0.028 in.)
- Insulation Diameter
- 1.22 mm
(0.048 in.) maximum
- Pairs Diameter
- 2.49 mm
(0.098 in.)
- Cable Diameter
- 5.23 mm
(0.206 in.)
- Overall Cable Diameter
- 7.37 mm nominal ± 0.13 mm
(0.29 in. nominal ± 0.005 in.)
- Weight
- 18.82 kg
(41.5 lb)
