Military Transport Case for SkyVue 8M
36215

36215

Limited availability

Military Transport Case for SkyVue 8M

Model:
36215
Item Number:
36215

Overview

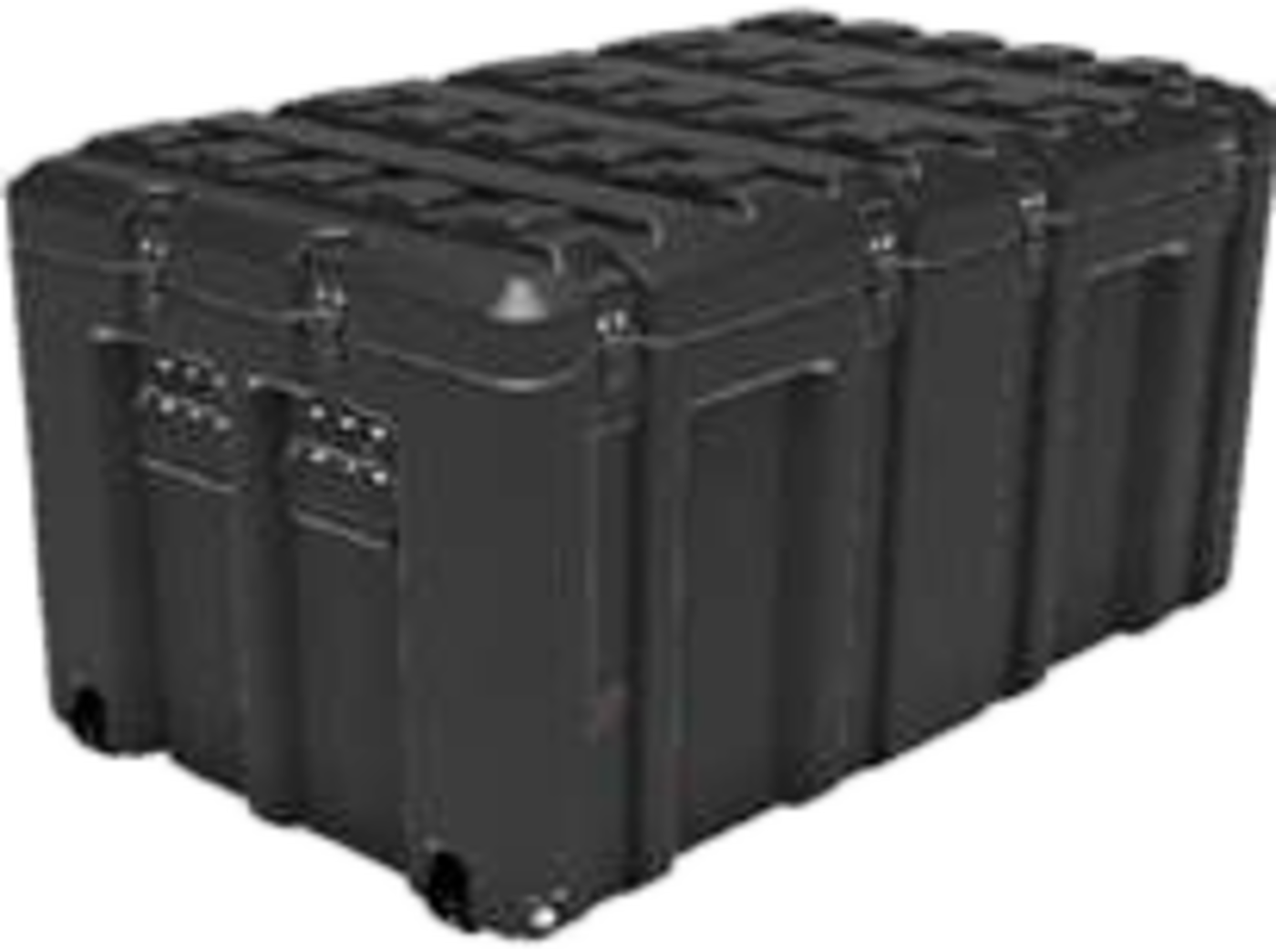

The 36215 offers a hard-shell wheeled case with a cut-out foam lining for the safe transport and storage of the SkyVue™8M Tactical LIDAR Ceilometer. This military transport case is manufactured to withstand the toughest environmental and climatic conditions. The case is manufactured as a solid uniform structure, which makes it extra resistant to impact and vibration and enables the case to be handled and transported in extreme situations. The polymer raw material resin is UV-resistant and is specifically designed to function in extreme temperatures and under solar load. The 36215 case carries a special silicone seal that makes it waterproof and resilient to humidity, salt, sand, and dust. The case is corrosion- and mold-resistant, offering protection against contamination from solvents and chemical agents.

Twin handles are located at each end of the case with wheels at one end. The detachable lid is retained by 12 steel ratchet straps.

Note: Campbell Scientific only certifies the protection of the SkyVue 8M in drop and vibration tests in conjunction with our case.

Key Advantages

Heavy-duty Transport Case

Benefits

  • Easy grip, ruggedized stainless-steel handles
  • Pressure relief valve
  • Stainless-steel heavy-duty catches
  • Waterproof silicone seal between base and lid
  • Resistant to heat, drops, rain, crushing, water, and dust

Specifications

Color
Black
Material
LLDPE body and lid
Material
Stainless-steel latch
Material
Stainless-stell handle
Material
Silicon closure gasket
Standards
Protects the SkyVue 8M to the following standards:
  • MIL-STD-810g
  • DEF STAN 00-035
Exterior Dimensions
1000 x 600 x 600 mm

(39.37 x 23.62 x 23.62 in.)

Interior Dimensions
910 x 510 x 550 mm excluding foam

(35.83 x 20.08 x 21.65 in. excluding foam)

Weight
28 kg

(62 lb) without sensor or components
