36218
Replacement Laser Assembly for SkyVue 8/M and SkyVue PRO
36218
OrderableReplacement Laser Assembly for SkyVue 8/M and SkyVue PRO
Overview

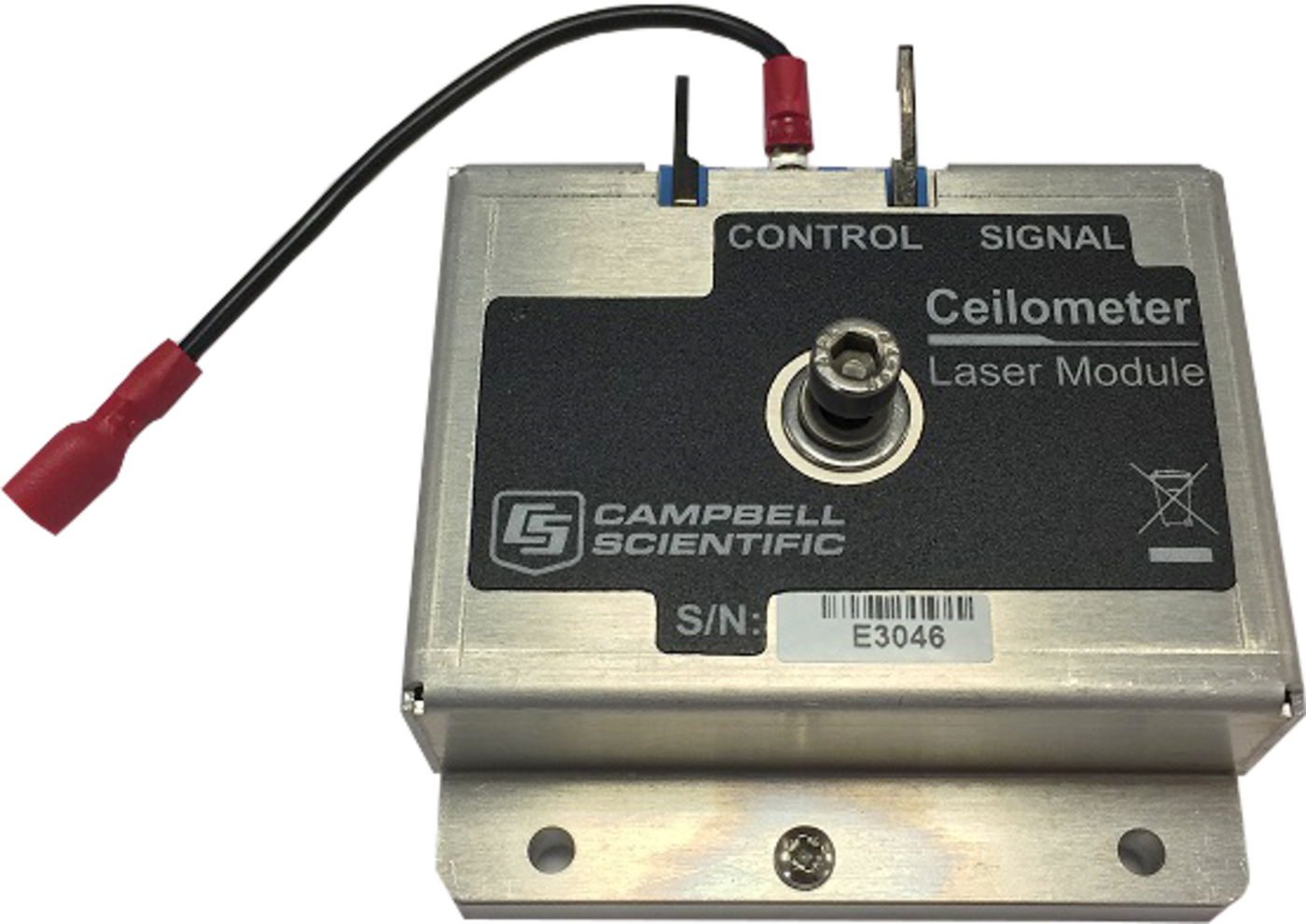

The 36218 is a replacement laser assembly for connection to the existing cables in the SkyVue™8M, SkyVue™8, or SkyVue™PRO ceilometer. The laser assembly contains a Class 3B laser that is aligned upon installation on the base of the optical assembly of the ceilometer.
Specifications
- Laser Type
- InGaAs
- Class 3B Wavelength
- 912 ±5 nm
- Pulse Duration
- 100 ns
- Pulse Frequency
- 10 kHz
- Maximum Average Power
- 15.0 mW
- Dimensions
- 30.5 x 15.2 x 10.2 cm
(12.0 x 6.0 x 4.0 in.)
- Weight
- 362.9 g
(0.8 lb)
