42877

The 42877 AL205-Series Transmit Radio Cable, manufactured by Maxon Australia, is used to transmit ALERT2 packets by connecting an SD-125 Maxon radio to your AL205E, AL205B, or AL205R.

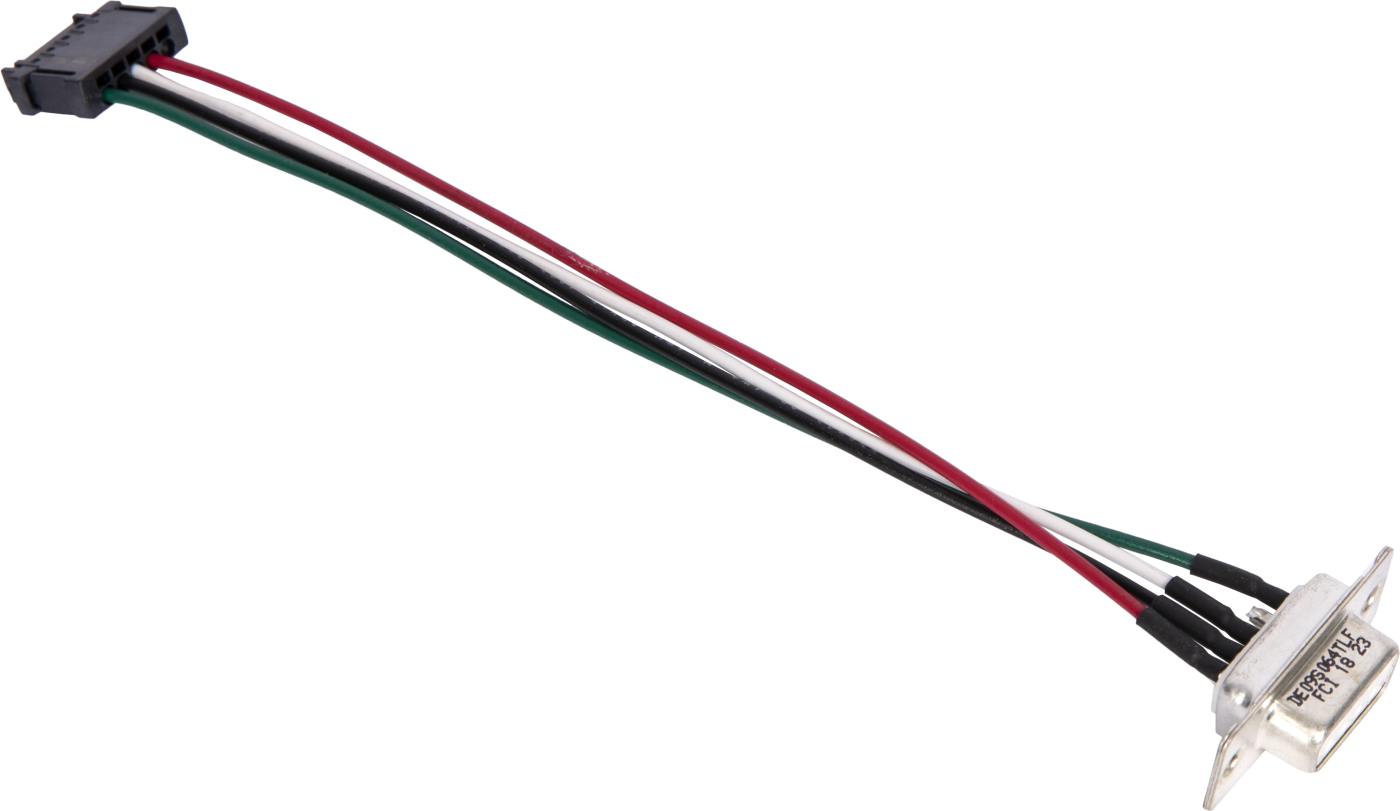

This cable is a six-inch cable with a standard female DB9 connector on one end and a five-pin transmitter connector on the other. The DB9 connector is used with the radio, and the transmitter connector is used with the transmitter header of the AL205B or AL205R. The transmitter header on the AL205E, AL205B, or AL205R is a five-pin header located on the side of the unit. This header is labeled according to individual pins, AO G PTT 12V CS.

Pinout Description:

• Pin 1: RF Data, Green 1
• Pin 2: Ground, Black 4
• Pin 3: Push to Talk, White 3
• Pin 4: 12 V Out, Red 5
• Pin 5: Channel Select No Connect, 2, 6, 7, 8, and 9
