42878

The 42878 AL205-Series Transmit Radio Cable, manufactured by Ritron, is used to transmit ALERT2 packets by connecting an RF320 Ritron radio to your AL205E, AL205B, or AL205R.

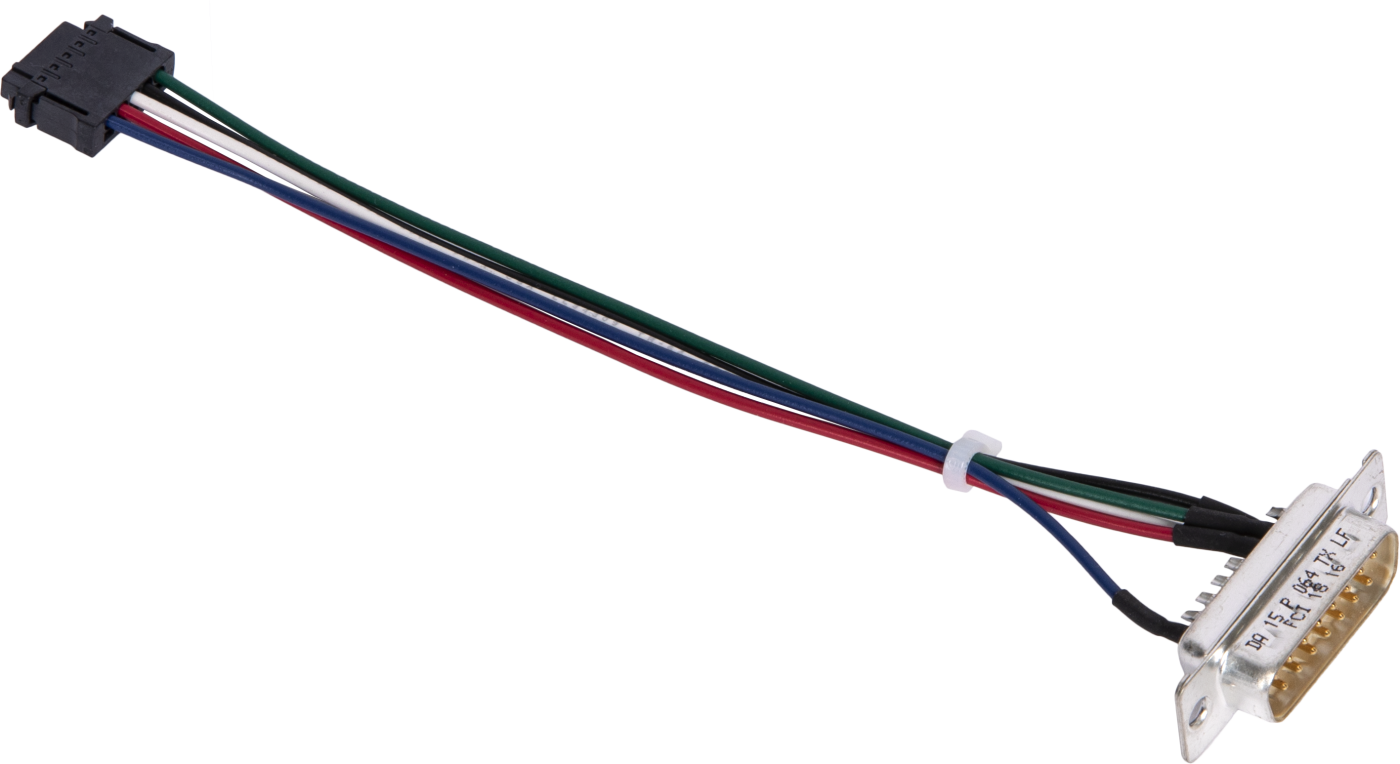

This cable is a six-inch cable with a standard male DB15 connector on one end and a five-pin transmitter connector on the other. The DB15 connector is used with the radio, and the transmitter connector is used with the transmitter header of the AL205B or AL205R. The transmitter header on the AL205E, AL205B, or AL205R is a five-pin header located on the side of the unit. This header is labeled according to individual pins, AO G PTT 12V CS.

Pinout Description:

• Pin 1: RF Data, Green 7
• Pin 2: Ground, Black 15
• Pin 3: Push to Talk, White 14
• Pin 4: 12V Out, Red 6
• Pin 5: Channel Select, Blue 1
• No Connect: No Connect, 2, 3, 4, 5, 8, 9, 10, 11, 12, 13, and 14
