8039
Ground Lug Connector, 8 AWG Max
8039
OrderableGround Lug Connector, 8 AWG Max
Overview

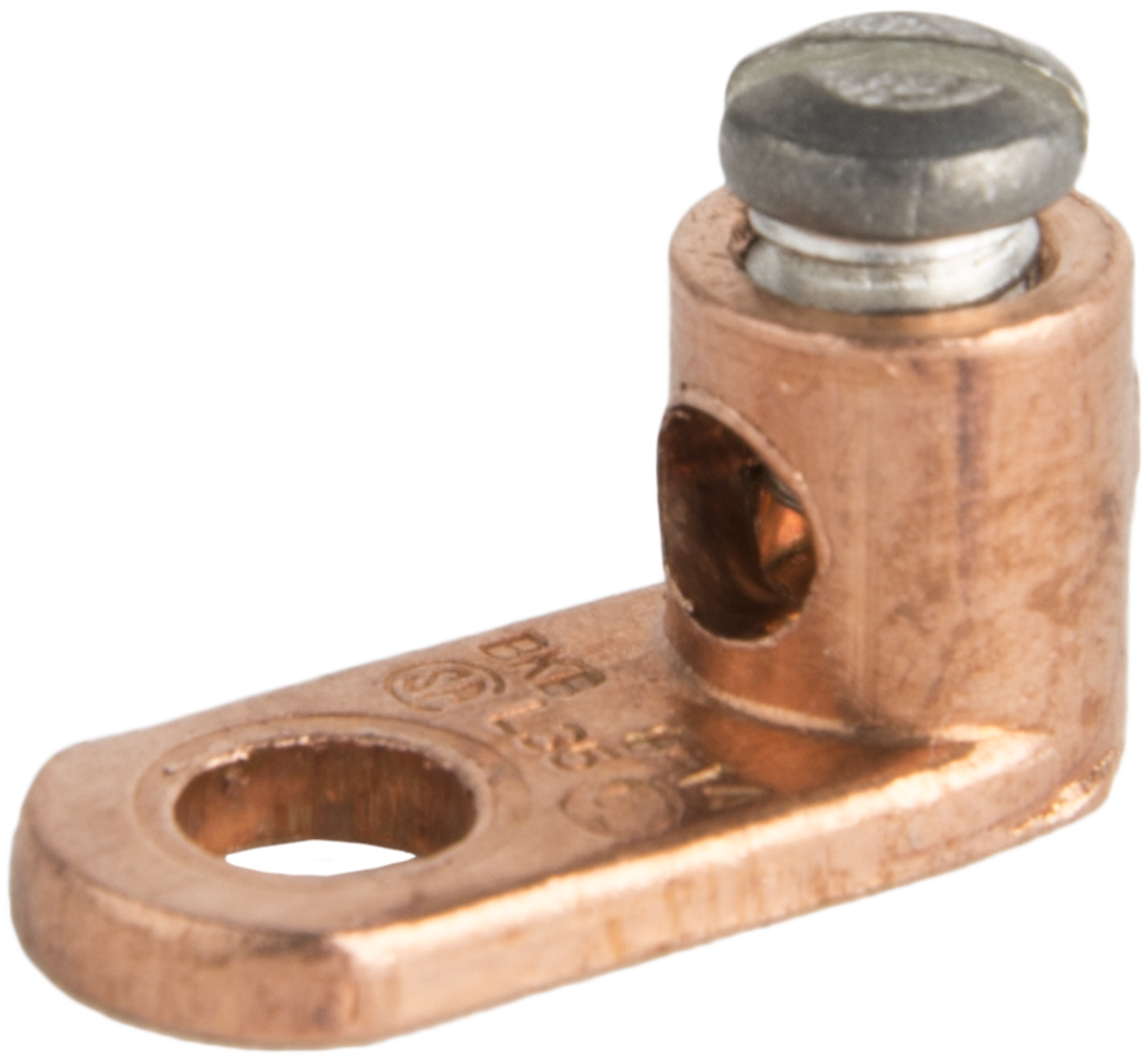

The 8039 Ground Lug Connector is a type L mechanical connector used for connecting a grounding wire to several models of data logger and measurement peripherals. For products where the 8039 is a replacement part, it is fastened in place with the 8673 #10-32 Nylock Nut. The termination hole accommodates grounding wire ranging in size from 14 AWG to 8 AWG.
Specifications
- Assembled Dimensions
- 20.5 x 10 x 13 mm
(0.81 x 0.39 x 0.51 in.)
- Weight
- 4.54 g
(0.01 lb)
