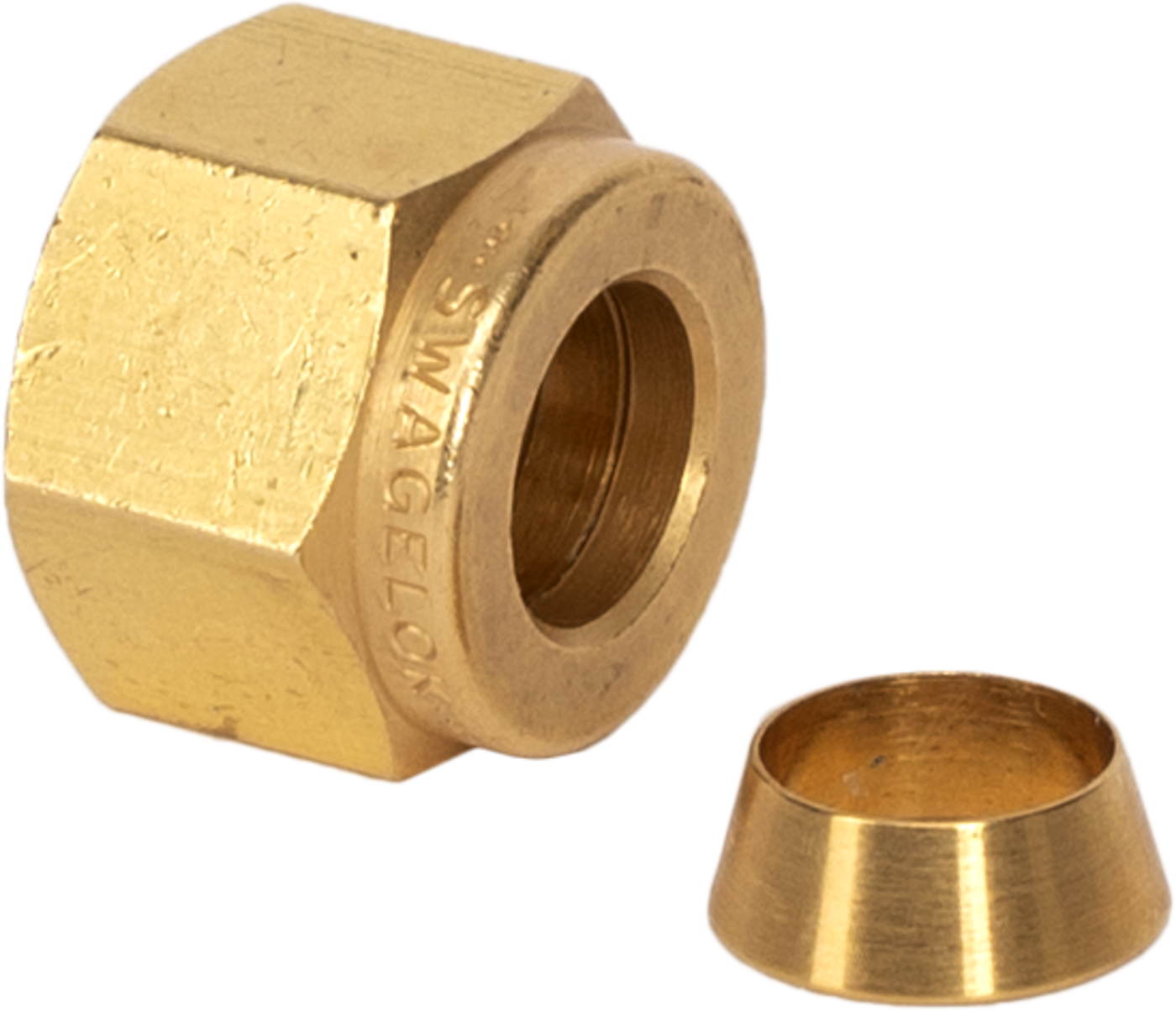

8680
3/8 in. x 1/4 in. Orifice Line Connection Fitting
8680
Orderable3/8 in. x 1/4 in. Orifice Line Connection Fitting
Overview
The 8680 is the replacement Swagelok fitting (B-600-1-4) to connect the orifice line to the LevelVue™B10 Orifice Line End Cap (part number 34961).
Technical Description
The 8680 is a Swagelok B-600-1-4 fitting with a 3/8 in. compression fitting on one end and 1/4 in. NPT male threads on the other end.The 8680 threads into the orifice end cap and attaches the end cap to the orifice line.
Specifications
- Outer Diameter
- 0.953 cm
(0.375 in.)
- Dimensions
- 1.91 x 1.91 x 1.27 cm
(0.75 x 0.75 x 0.5 in.)
- Weight
- 22.68 g
(0.05 lb)
