CS325DMCBL

Replacement Cable for the CS325DM
CS325DMCBL

CS325DMCBL

OrderableConfigurable

Replacement Cable for the CS325DM

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
CS325DMCBL
Item Number:
34115

Overview

The CS325DM cable is used for differentially transmitting data and power over twisted pairs to the CS325DM-L Silicon Irradiance Reference Sensor. This premium industrial Ethernet cable has controlled characteristic impedance for each twisted pair, making it suitable for maintaining high signal fidelity on the RS-485 signals with minimal signal reflections and excellent noise rejection. Jacket material is designed for outdoor use including UV exposure resistance and temperature performance of -40 to +75°C. Agency approvals include UL AWM Style 2463 (80C, 600V) and NEC/CEC (UL) CMX OUTDOOR. The cable has a high-flex construction with a jacket that can be pulled in conduit in addition to its resistance to weld spatter and oil.

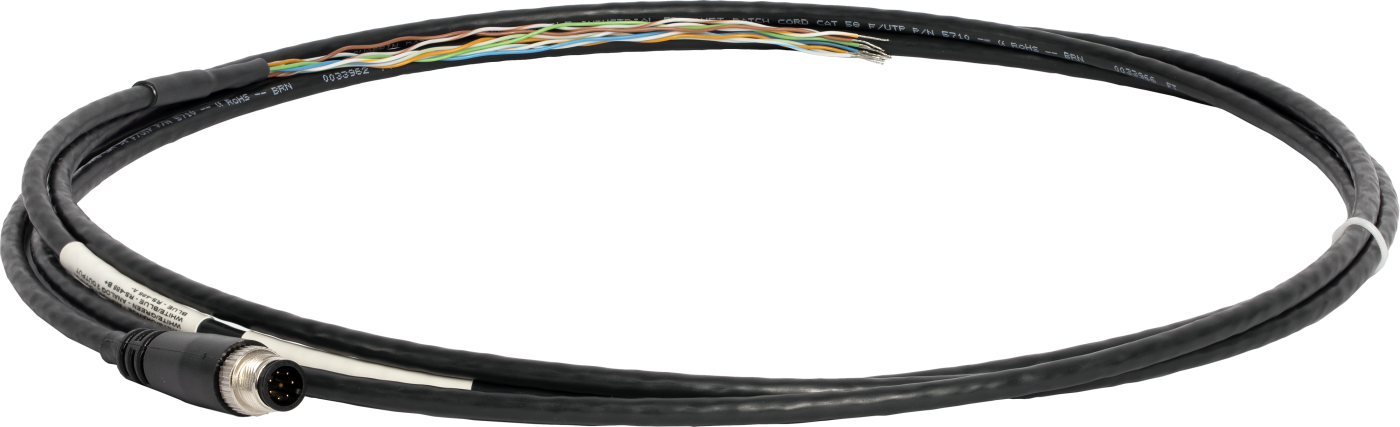

The CS325DMCBL includes a connector on one side of the cable for matching any user-specified length of 33117 Ethernet cable to a CS325DM Silicon Irradiance Reference Sensor. The other side of the cable is pigtailed and tinned.

Technical Description

Wiring Diagram

Pin Wire Color Function
3 Blue RS-485 A/A' [-]
2 White/Blue

RS-485 B/B' [+]
4 White/Brown

12V Vdc
1 Brown

Power Ground
5 Green

Modbus Common

Benefits

  • NEC, UL, and CEC OUTDOOR rated, premium industrial grade
  • Outdoor rated with excellent UV, temperature, and voltage ratings
  • Differentially transmitted data with excellent noise rejection
  • High-flex construction that can be pulled through conduit
  • Suitable for POE
  • Fire, cutting/machining oil, and weld splatter resistant

Specifications

Maximum Temperature Rating
75°C and 80°C

(jacket 105°C; oil 75°C)

Minimum Temperature Rating
-40°C
Conductor Material
22 AWG 19/0.0058 stranded tinned copper
Insulation Material
High-density polyethylene 0.254 mm (0.01 in.) nominal wall thickness
Pairs
Color-coded singles twisted into pairs

WHITE/BLUE X BLUE WHITE/ORANGE X ORANGE WHITE/GREEN X GREEN WHITE/BROWN X BROWN

Cable Type
4 twisted pairs twisted together and wrapped with clear polyester tape to form a cable core
Jacket Material
Thermoplastic elastomer, 1.07 mm (0.042 in.) nominal wall thickness

(pressure)

Voltage Rating
600 V

(maximum) for 100 m (328.08 ft ) of cable

DC Resistance
6.0 Ω

(maximum) for 100 m (328.08 ft ) of cable

Impedance
100 ± 15 Ω 1 to 100 MHz

for 100 m (328.08 ft ) of cable

Impedance
100 ± 20 Ω 100 to 350 MHz

for 100 m (328.08 ft ) of cable

Nominal Mutual Capacitance
13.5 PF/FT. at 1 MHz
Approvals
UL AWM 2463 (80C 600V)
Approvals
NEC (UL) TYPE PLTC
Approvals
NEC (UL) TYPE CMX OUTDOOR – CM
Approvals
CEC C(UL) TYPE CMX OUTDOOR – CM
Approvals
PENNSYLVANIA D.E.P. – MSHA
Compliance Information
POE compliant (802.3af) to 100 meters when installed per recommendations in TIA TSB-184.
Compliance Information
Cable will meet CAT5e channel requirements to 100 meter length.
Compliance Information
RoHS compliant materials
Conductor Diameter
0.71 mm

(0.028 in.)

Insulation Diameter
1.22 mm

(0.048 in.) maximum

Pairs Diameter
2.49 mm

(0.098 in.)

Cable Diameter
5.23 mm

(0.206 in.)

Overall Cable Diameter
7.37 mm nominal ± 0.13 mm

(0.29 in. nominal ± 0.005 in.)

Weight
18.82 kg

(41.5 lb)
