CS659P
CS659P
OrderableWater-Content Reflectometer for HS2P, 12 cm Rods
Overview

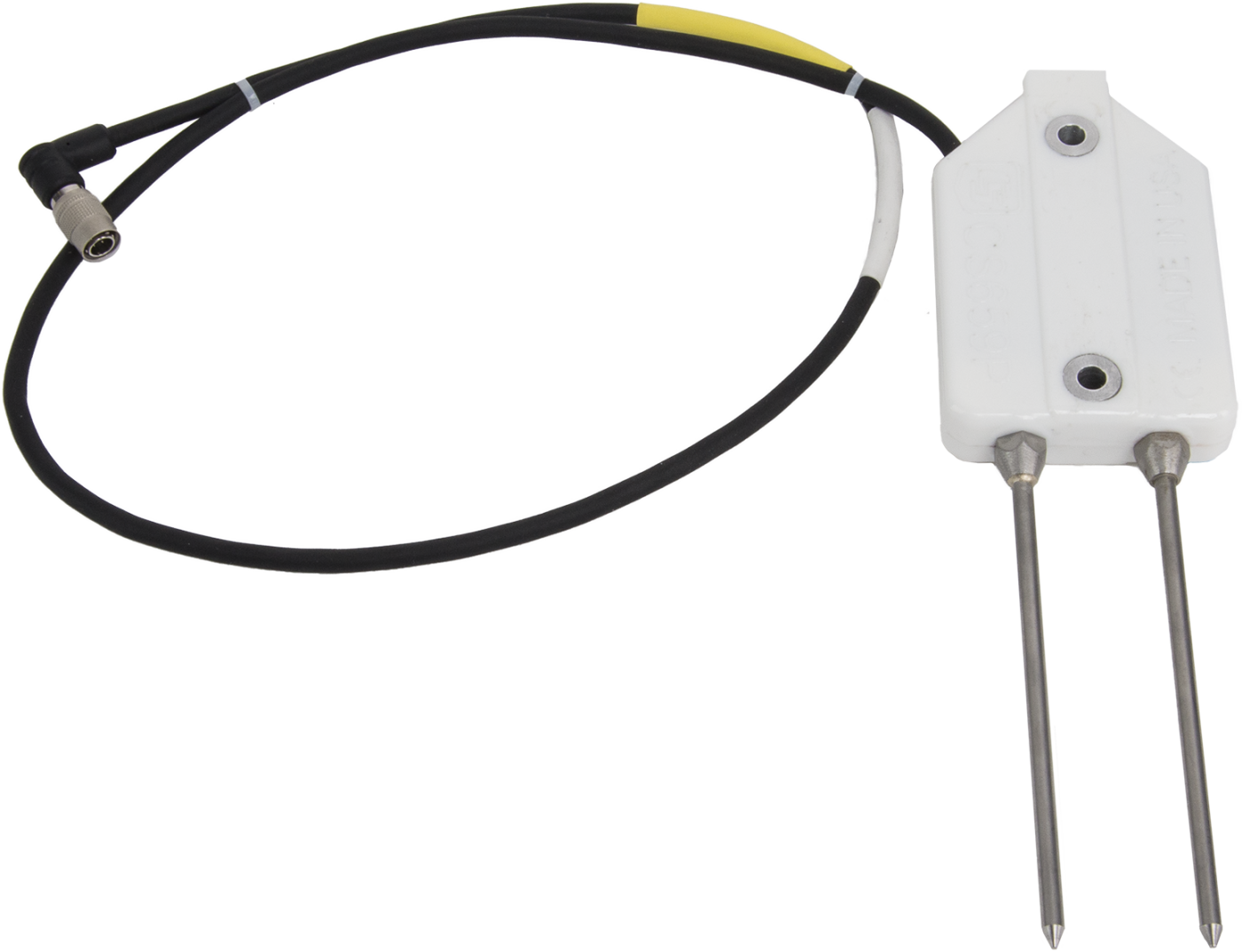

The CS659P is a water content probe used in the HS2P system (not for use with data loggers). (The CS659P is designed for use with the HS2P but not with the HS2.) This probe has 12 cm rods; another probe, the CS658P, has 20 cm rods. When ordered with the HS2P, the CS659P is option -12. It is also available as a replacement part.
Specifications
- Volumetric Water Content Accuracy
- 3% typical
(solution electrical conductivity < 6.5 dS/m)
- Volumetric Water Content Resolution
- < 0.05%
- Volumetric Water Content Range
- 0 to 50% VWC
- Ingress Protection Rating
- IP68
- Rod Diameter
- 5 mm
(0.14 in.)
- Rod Length
- 120 mm
(4.7 in.)
- Body Dimensions
- 100 x 92 x 40 mm
(3.9 x 3.6 x 1.6 in.)
- Weight
- 276.69 g
(0.61 lb)
Replacement Parts
(2)18591
12 cm TDR Rods for CS620 or CS659 (quantity of 2)
The 18591 provides two 12 cm rods. If only one rod needs to be replaced, customers may order the 10184.
Orderable10184
12 cm TDR Rod for CS620 or CS659 (quantity of 1)
The 10184 provides one 12 cm rod. The 10184 is available when only one of the CS659P rods needs to be replaced.
Orderable
Compatibility
The CS659P is used with the HS2P system only. (The CS659P is designed for use with the HS2P but not with the HS2.) The rods of the CS659P and CS658P are not interchangeable.
