5-Pin Screw Terminal Plug Connector
14252
Orderable5-Pin Screw Terminal Plug Connector
Overview

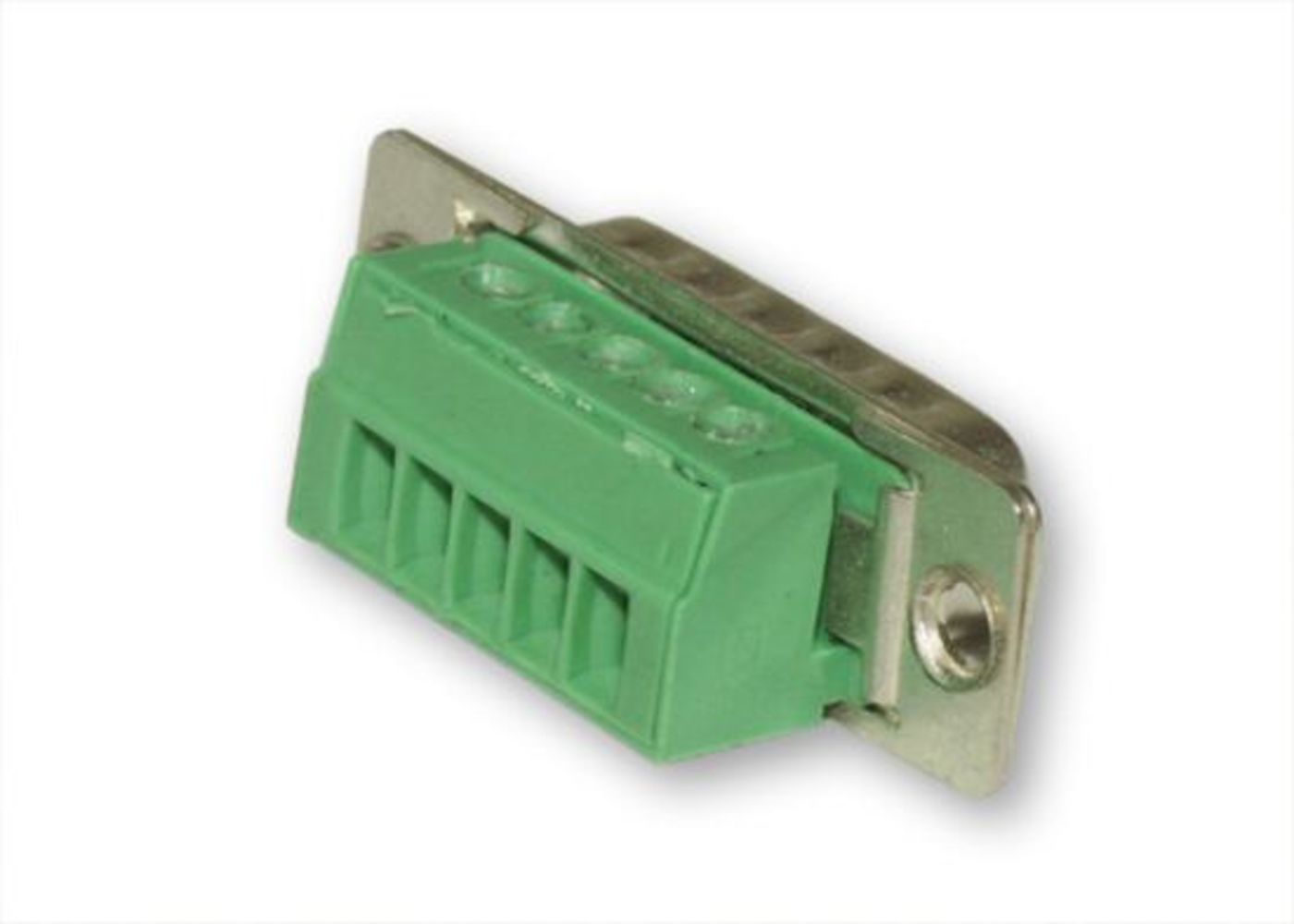

The 14252 SDM connector consists of five screw terminals and a D-subminiature connector. The D-subminiature connector mates with the SDM connector on a CSAT3 or TDR100. The other end of the 14252 provides the 12V, GND, C1, C2, and C3 terminals for the CSAT3 or TDR100.
Specifications
- Pitch
- 3.5 mm
(0.138 in.)
- Wire Entry
- Straight wire entry
- Wire Type
- 16 to 28 AWG
- Dimensions
- 3.91 x 1.6 x 3.91 cm
(1.54 x 0.63 x 1.54 in.)
- Weight
- 9.07 g
(0.02 lb)
