17565

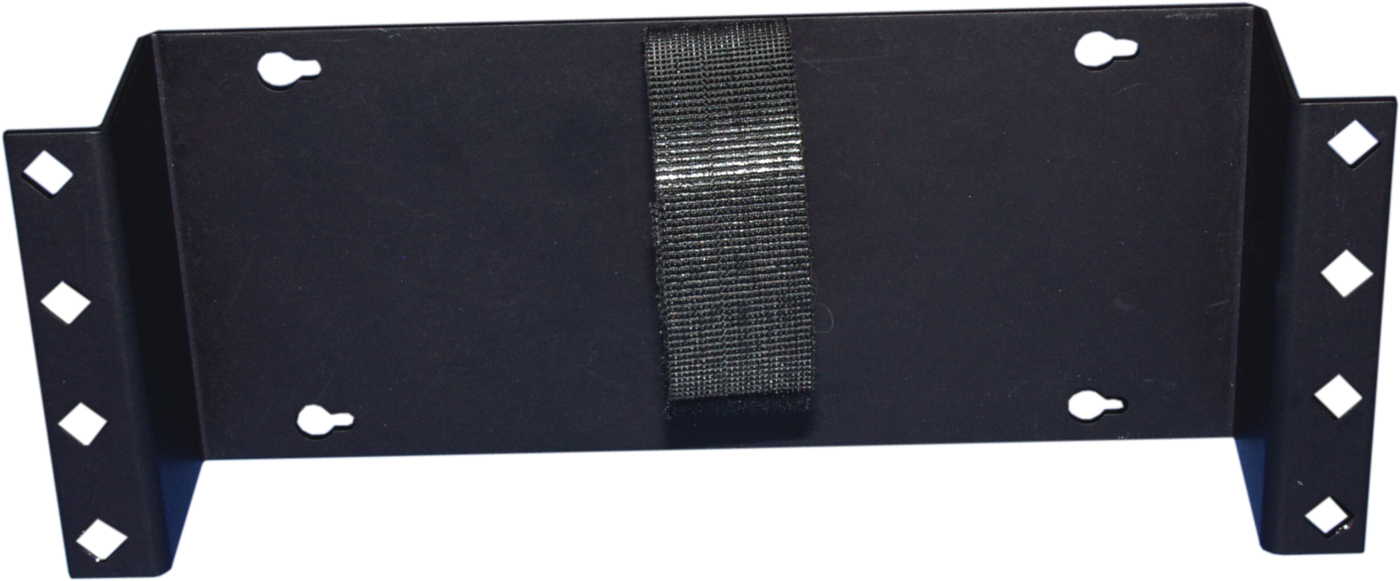

The 17565 stack bracket is used in CR800 or CR1000 applications where it is desirable to have the data logger attached to a bracket and up off the enclosure backplate rather than mounted directly to the enclosure backplate. The bracket mounts to the backplate of our enclosures using screws and grommets in the diamond-shaped holes. The base of the data logger mounts in the keyhole slots and a small peripheral can be secured with the Velcro strap underneath the data logger.

The 17565 Stack Bracket is used in CR800, CR850, or CR1000 applications, where it is desirable to have the data logger attached to a bracket and up off the enclosure backplate rather than mounted directly to the enclosure backplate. The bracket mounts to the backplate of our enclosures using screws and grommets in the diamond-shaped holes. The base of the data logger mounts in the keyhole slots and a small peripheral can be secured with the Velcro strap underneath the data logger.

The 17565 is used in the following cases:

• If the CR800, CR850, or CR1000 will be mounted horizontally in an ENC10/12 enclosure.

• If you desire to place a small peripheral under the mounting bracket and secure it with Velcro®, thus conserving space

• If you desire to have the wiring panel terminals at about the same height from the enclosure backplate as the terminals in one of our power supplies. However, this may make sensor wiring more difficult if you have sensors or peripherals with "stiff" cable jackets.
