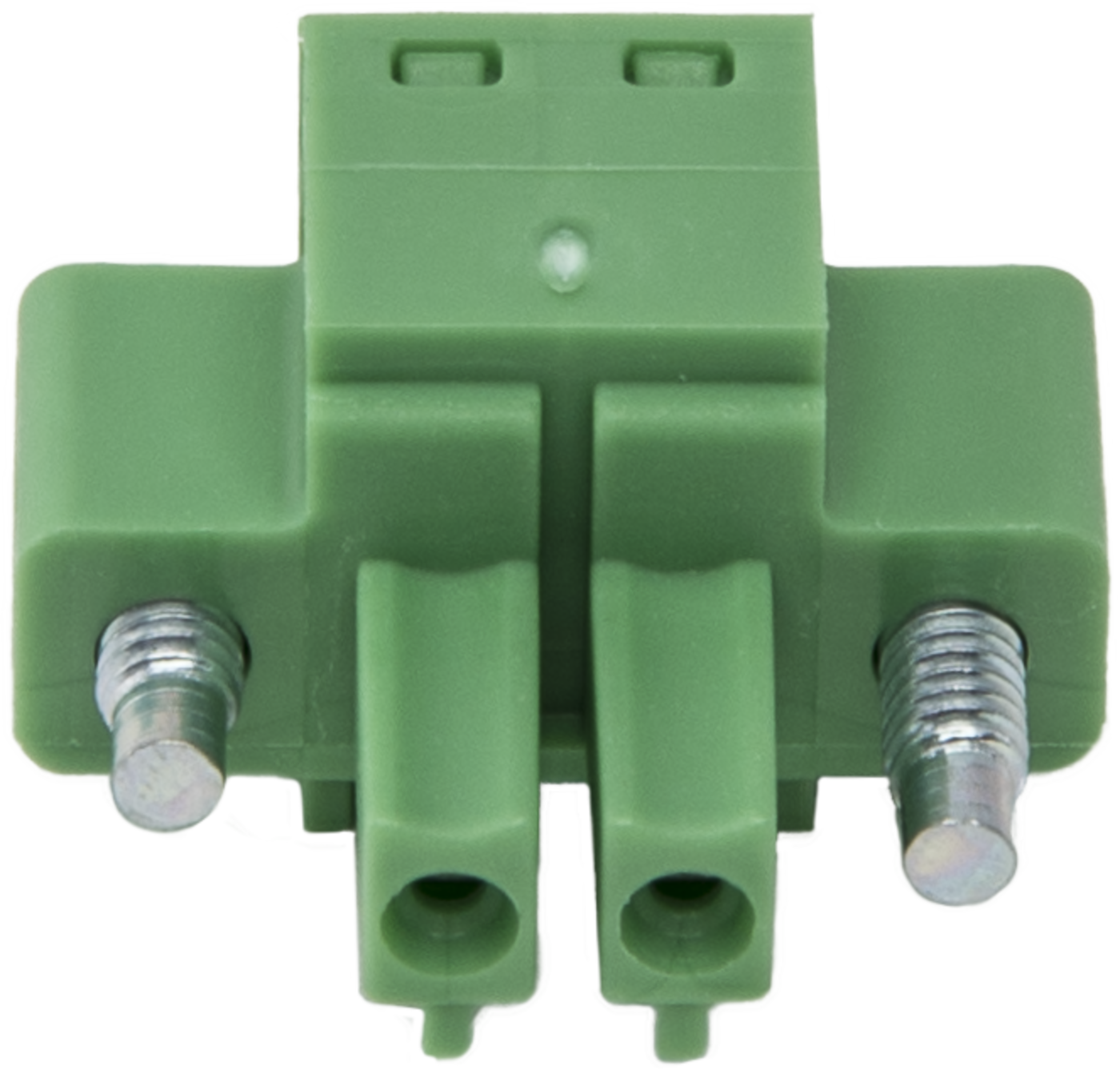

Green 2-Pin Screw Terminal Plug Connector with Threaded Flange
7843
OrderableGreen 2-Pin Screw Terminal Plug Connector with Threaded Flange
Overview
This 2-pin, detachable, power supply connector (green) is supplied with the rechargeable base of a CR5000, CR3000, and CR23X datalogger, as well as with the power input of a TX320 and TX312 GOES transmitter. It can be purchased to replace a lost or damaged connector.
Please note that a similar green power connector, the 3768, is shipped with some of our data loggers. You can differentiate the two connectors by their size; the 7843 is larger.
Specifications
- Pitch
- 0.381 cm
(0.15 in.)
- Plug Type
- 2-pin screw terminal plug connector
- Wire Entry
- Straight, 16 to 28 AWG
- Color
- Green
- Dimensions
- 1.8 x 1.18 x 1.8 cm
(0.71 x 0.44 x 0.71 in.)
- Weight
- 4.54 g
(0.01 lb)
