OrderableConfigurableRemote Strobe and Siren Alarm
Pricing
Configuration
Sign in for option pricing- w/Pole Mount w/10m (33ft) per Sensor -PT w/Tinned Wires-PMNT
- w/Pole Mount w/30m (100ft) per Sensor -PT w/Tinned Wires-PMNT
- w/Flat Mount w/10m (33ft) per Sensor -PT w/Tinned Wires-FMNT
- w/Flat Mount w/30m (100ft) per Sensor -PT w/Tinned Wires-FMNT
Select a configuration to add to your quote
- Model:
- RA100
- Item Number:
- 45290
- Warranty:
- 1 year
Overview

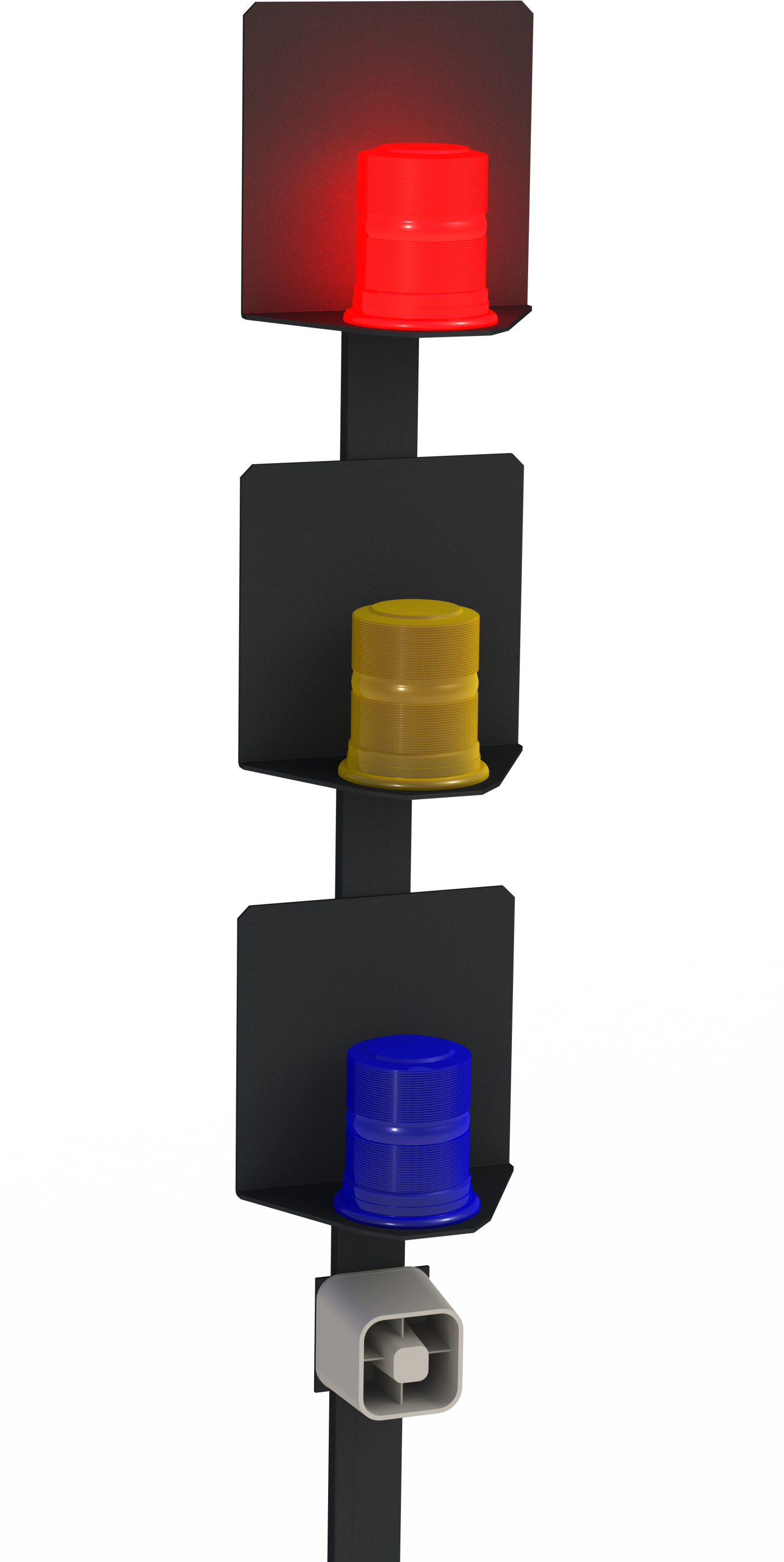

The RA100 Remote Strobe and Siren Alarm provides visual and audible signals of alarm or status conditions. The red, amber, and blue strobes are SAE Class II LED beacons with a 100,000 hour rated lifetime and an average current drain of 0.26 A at 12.8 Vdc. The 125 dB ± 2 dB at 0.3 m (1 ft) siren has a current draw of 0.62 A at 12 Vdc, but is typically on 3 s out of 120 s, allowing the average current drain to be less than 0.02 A. The strobes and siren are mounted to 58 in. aluminum tubing that has a painted irridite and black powder coating for looks and durability.
Key Advantages
Visual Alarms
For use with lightning
warning system
Technical Description

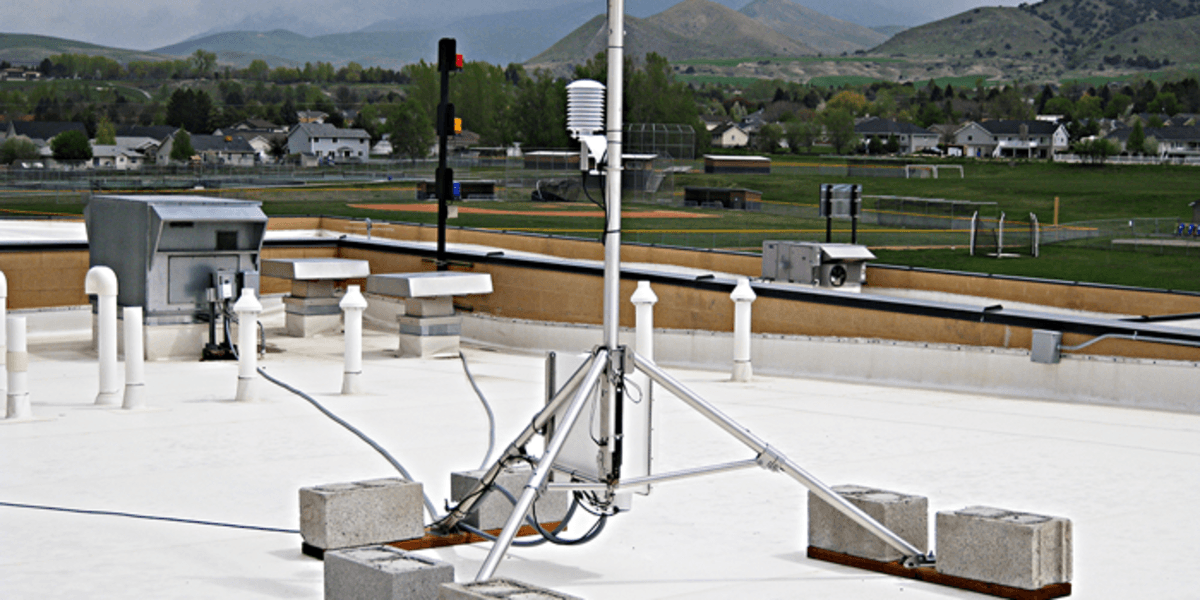

While the RA100 is typically part of the LW110 Lightning Warning System or the RA110 Remote Alarm System, it can be purchased as a stand-alone item for many applications. It is easily powered and controlled by a Campbell Scientific data logger and the SDM-CD8S 8-Channel Solid-State DC Controller.
Benefits
- SAE Class II LED beacons with 100,000 hour rated lifetime
- 125 dB ± 2 dB at 0.3 m (1 ft) siren
- Low power consumption
- Rugged construction
- Easily powered and controlled by a Campbell Scientific data logger and the SDM-CD8S 8-Channel Solid-State DC Controller
- Includes two stainless-steel brackets for mounting to a flat surface
- Optional pole-mount kit allows mounting to a pole with a 1.5 to 4 in. outside diameter
- Optional 3.3 ft extension allows mounting to a parapet wall
Specifications
LED Beacons
- Rated Lifetime
- 100,000 h
- Colors
- Red, amber, blue
- Current Drain
- 0.65 A (peak)
@ 12.8 Vdc
- Current Drain
- 0.26 A (average)
@ 12.8 Vdc
- Diameter
- 14 cm
(5.5 in.)
- Height
- 16.3 cm
(6.4 in.)
Siren
- Sound Output
- 125 dB ± 2 dB at 0.3 m
(1 ft)
- Operating Temperature Range
- -20° to +65°C
(-4° to +149°F)
- Operating Voltage
- 4.8 to 14.4 Vdc
- Current Drain
- 0.62 A
(maximum)
- Current Drain
- 0.02 A
(average)
Pole
- Material
- Aluminum tubing with irridite and black powder coating
- Dimensions
- 1.5 m x 7.6 cm x 3.8 cm
(4.8 ft x 3.0 in. x 1.5 in.)
LED Backplate
- Material
- Aluminum
- Dimensions
- 19.1 x 30.5 x 30.5 cm
(7.5 x 12 x 12 in.)
Siren Backplate
- Material
- Aluminum
- Dimensions
- 12.7 x 12.7 x 0.5 cm
(5 x 5 x 0.2 in.)
Mounting Bracket for Mounting to Flat Surface
- Material
- 12 gage stainless steel
- Dimensions
- 13.9 x 4.0 x 3.2 cm
(5.5 x 1.6 x 1.3 in.)
Extension Pole
- Material
- Aluminum tubing with irridite and black powder coating
- Wind Load
- 233.4 kph (145 mph) wind gust or 180.3 kph (112 mph) steady winds with a safety factor of 1.25
Assumes 158.8 kg (350 lb) pullout strength of the customer-supplied 0.635-cm (0.25-in.) expansion bolts, the top mounting bracket installed just below the joint, and the bottom mounting bracket mounted at least 0.61 m (2 ft) below the top bracket. - Dimensions
- 1.15 m x 7.6 cm x 3.8 cm
(3.5 ft x 3.0 in. x 1.5 in.)
