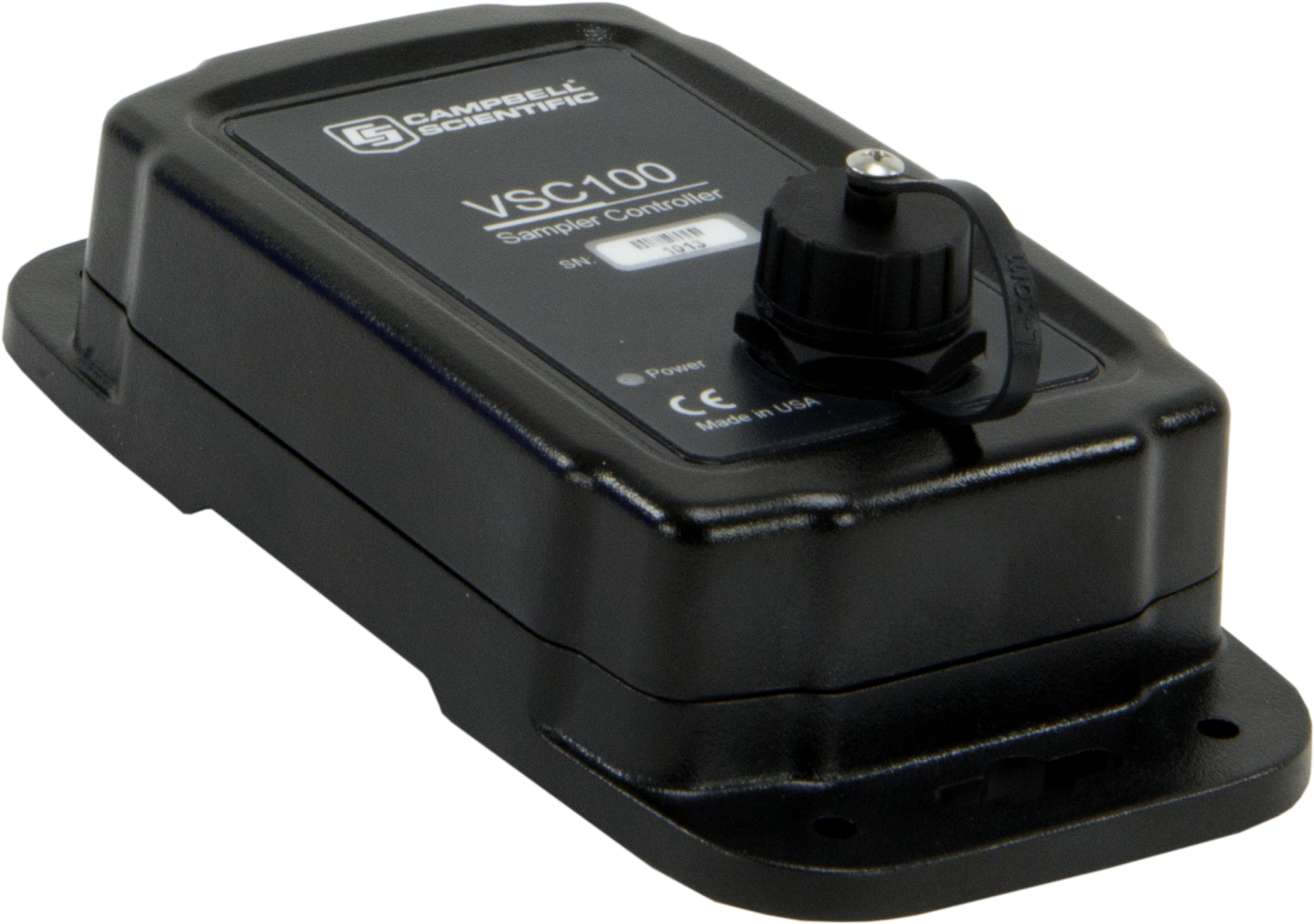

VSC100
Sampler Controller
VSC100
RetiredSampler Controller
Pricing
- Model:
- VSC100
- Item Number:
- 30169
- Warranty:
- 1 year
Overview
The VSC100 is included with the PVS5120-series water samplers, and it can be ordered as a replacement part.
The VSC100 allows a sampler to be controlled by an external data logger or PLC device without the need to independently program the sampler. The VSC100 is used instead of a controller with a keyboard display. For most deployments, pushing a button after the sampler is in place is all that needs to be done to set all of the time settings (purge time, etc.).
Key Advantages
Simplifies Controlling the Sampler
Benefits
- Trigger sample collection from the PLC via: <ul><li>Modbus or PakBus over RS-485</li><li>Pulse input: switch closure or waveform</li><li>SDI-12</li><li>Time based (no data logger needed)</li></ul>
- Get detailed return feedback regarding sample via: <ul><li>Modbus or PakBus over RS-485</li><li>SDI-12</li> <li>Pulse (only returns sample completion)</li></ul>
- USB connection to PC for configuration via our Device Configuration Utility (DevConfig)
Specifications
- Storage Temperature
- -20° to +50°C
- Operating Temperature
- 0 to 50°C
- Voltage Supply
- 12 Vdc
(nominal)
- Voltage Supply
- 16 Vdc
(maximum)
- Voltage Supply
- 9.6 Vdc
(minimum)
- Quiescent Power
- < 1 mA
- Enclosure Water-Tightness Rating
- IP66
- Dimensions
- 18.11 x 9.14 x 6.99 cm
(7.13 x 3.6 x 2.75 in.)
- Weight
- 294.84 g
(0.65 lb)
