End of lifeConfigurableVoice Radio Interface Module
Pricing
Configuration
Sign in for option pricing- Bendix King Radio CableVSP3-BR
- Midland Radio CablesVSP3-MR
Select a configuration to add to your quote
- Model:
- VSP3
- Item Number:
- VSP3
- Warranty:
- 1 year
- Compliance:
- requires user-supplied handheld radio
Overview
The VSP3 is a radio interface that converts data into voice messages that can be transmitted via a UHF or VHF transceiver. It allows customers to call their site using a hand-held radio and receive a verbal report of real-time site conditions.
The VSP3 uses phonetic native text-string-to-speech conversion, which provides for an unlimited vocabulary.
Ideal applications include fire weather, avalanche forecasting, local weather monitoring, irrigation control, water level monitoring, water quality, and industrial process control.
Technical Description

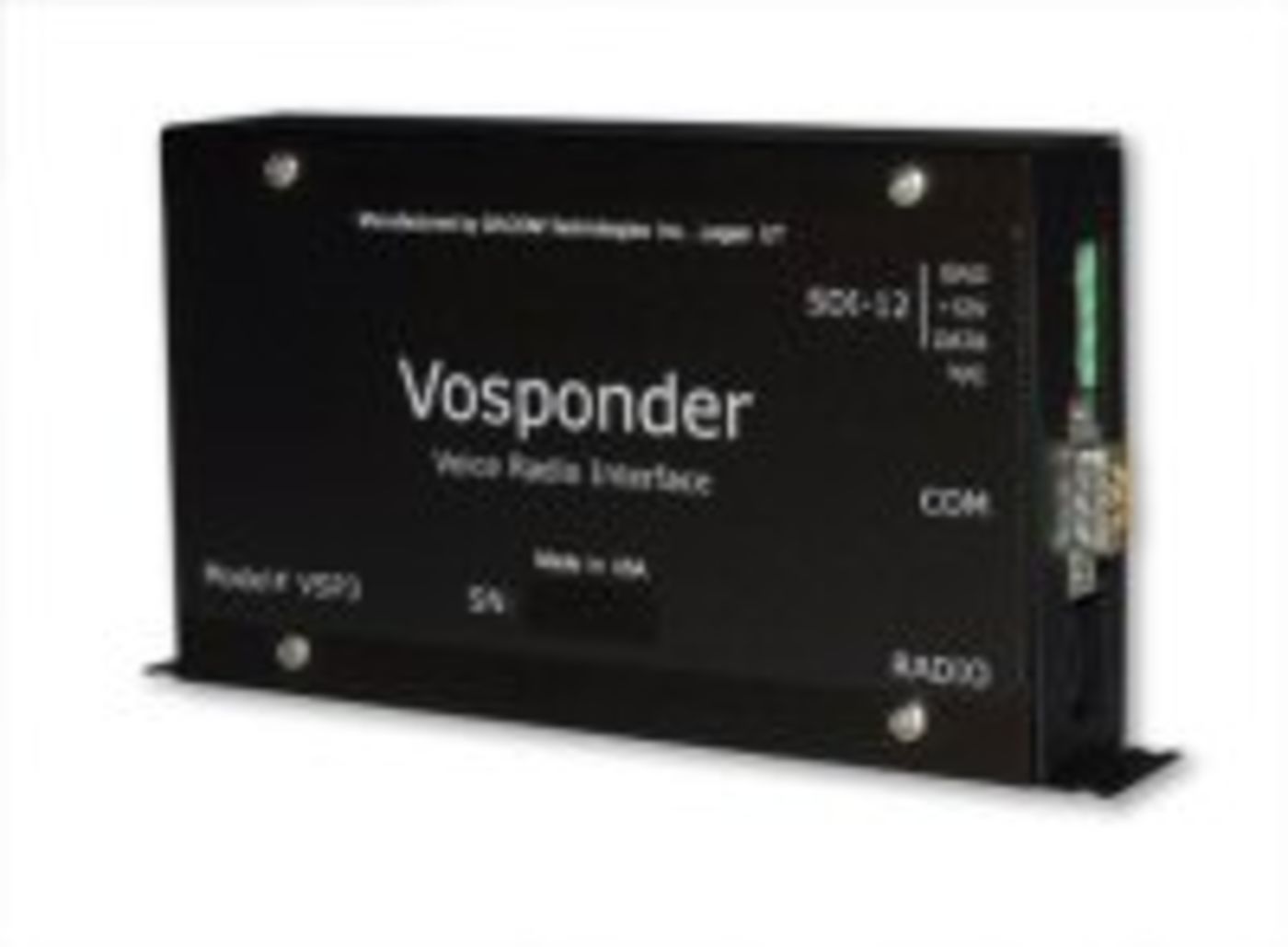

The VSP3 Vosponder, manufactured by DACOM Technologies, Inc., allows customers to call their site using a hand-held UHF or VHF radio and receive a verbal report of real-time site conditions. Ideal applications include fire weather, avalanche forecasting, local weather monitoring, irrigation control, water level monitoring, water quality, and industrial process control.
Customers initiate voice transmissions by pressing buttons on a hand-held radio. Once initiated, the Vosponder uses an SDI-12 interface to collect raw digital data from a Campbell Scientific data logger. The Vosponder then converts the collected data into natural human speech and recites a verbal message.
Benefits
- Broadcasts voice data to a hand-held radio with a matching radio frequency
- Converts data from SDI-12 compatible data loggers, data acquisition systems, or sensors into voice messages
- Provides unlimited vocabulary
Specifications
- Operating Temperature
- -10° to +55°C
- Programming Interface Port
- RS-232; communications parameters, data rate 2400 bps, no parity, 8 data bits, 1 stop bit, XON/XOFF
- Data Interface Ports
- SDI-12 three wire interface, emulates either a record (master mode) or a sensor (slave mode) using a subset of the SDI-12 protocol definition
- Output Level
- 10 to 2.5 mV
- Output Impedance
- 5 kohm nominal
(capacitor blocked)
- Carrier Operated Squelch Input
- 1.5 to 5 Vdc @ 10 mA
(max)
- Input Level
- 25 mV to 5 V
(factory adjustable)
- Input Impedance
- 10 kohm dc resistance
(not capacitor blocked)
- Power Requirements
- 10 to 16.8 Vdc
- Power Consumption @ 12.6 Vdc
- 25 mA
(quiescent)
- Power Consumption @ 12.6 Vdc
- 75 mA
(active)
- Dimensions
- 16.5 x 9.5 x 3.8 cm
(6.4 x 3.75 x 1.4 in.) without connectors and bracket
- Dimensions
- 22 x 9.5 x 3.8 cm
(8.5 x 3.75 x 1.4 in.) with connectors and bracket
- Weight
- 380 g
(0.9 lb)
DTMF Decoder
- Twist
- -10 to +6 dB
- Maximum Signal-to-Noise Ratio
- 10 dB
- Minimum Detect Tone Duration
- 40 ms
- Minimum Interdigit Time
- 30 ms
Ships With
(3)- Image Builder Software
- SDI-12 cable (2 ft)
