33446
33446

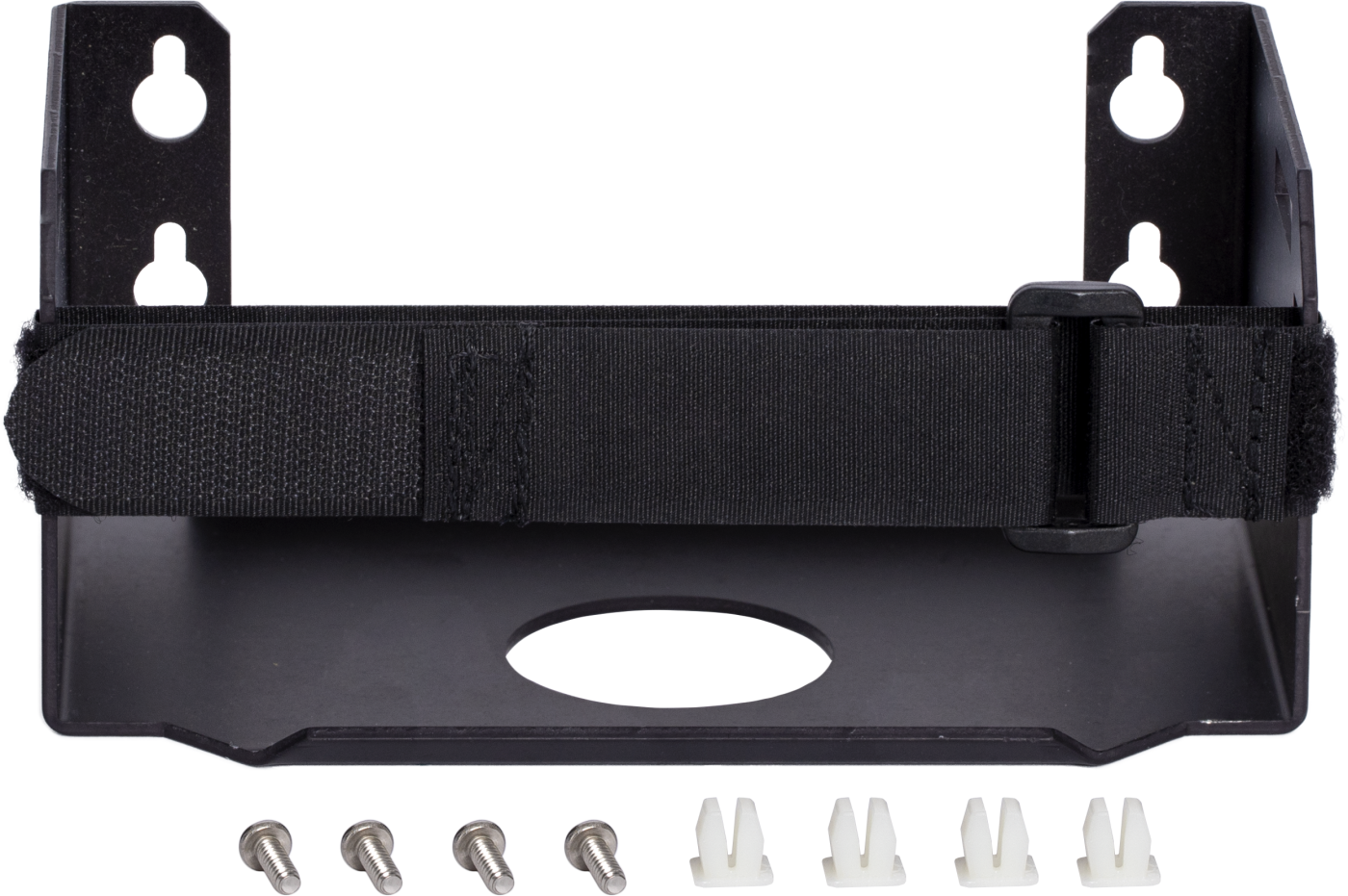

OrderableBP12 Mounting Kit
Overview
The 33446 kit provides the necessary mounting hardware if you would like to supply your own 12 Ah 12 V sealed rechargeable battery instead of using the BP12 battery. You can also use the 33446 kit with the 8062 (BP12 battery without mounting hardware).
Note: If the 33446 kit is used with the 8054 battery, the 34031 battery cable, and the 30401 battery cable, this is the equivalent of using the BP12.
Key Advantages
Purchase the battery locally
Specifications
- Shelf Dimensions
- 16.81 x 10.41 x 6.99 cm
(6.62 x 4.10 x 2.75 in.)
- Weight
- 158.76 g
(0.35 lb)
Replacement Parts
(4)505
Screw #6-32 x .375 Pan Phillips
Four 505 screws are used to attach the 8061 bracket to an enclosure backplate. Four 6044 grommets are also required.
Orderable6044
Grommet for #6 or #8 Screw
Four 6044 grommets are used to attach the 8061 bracket to an enclosure backplate. Four 505 screws are also required.
Orderable8061
BP12 Shelf Mounting Bracket
The 8061 is the main component of the BP12's mounting hardware (without grommets, screws, and Velcro strap). Four pn 505 screws and four pn 6044 grommets attach the bracket to an enclosure backplate. The 5207 Velcro strap secures the battery to the 8061 bracket.
Orderable5207
Velcro Strap, 1 in. x 18 in.
The 5207 holds the battery to the 8061 bracket.
