44732
RS485CBL Adapter for SunSentry Used with Lufft All-In-One
44732
OrderableRS485CBL Adapter for SunSentry Used with Lufft All-In-One
Overview

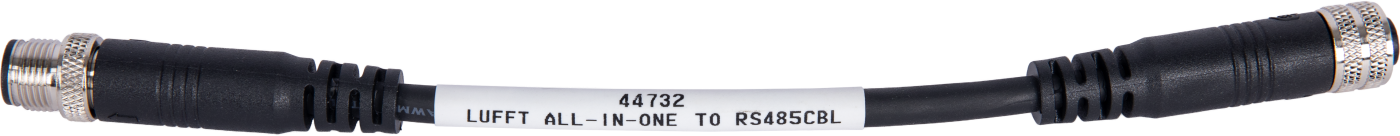

The 44732 is an accessory adapter cable designed so you can connect a Lufft all-in-one sensor that has an eight-pin M12 connector to the RS485CBL 24 AWG RS-485 Cable with M12 Five-Pin Connector through a five-pin M12 connection. This adapter cable provides a simple, factory-built interface to integrate compatible Lufft sensors with SunSentry systems. The 44732 features overmolded M12 connectors with a printed identification label.
Technical Description
Pinout Description
| Trunk Line | Color | Sensor Pinout |
|---|---|---|
| 1 | Red | 2–8 |
| 4 | Black | 1–7 |
| 2 | White | 3 |
| 5 | Blue | 4 |
| 3 | Green | 1 |
Benefits
- Provides a plug-and-play connection between compatible Lufft all-in-one sensors and the RS485CBL
- Eliminates the need for custom wiring or field-fabricated adapter cables
- Factory-assembled and electrically tested for reliable installation
- Durable environmental connection with rugged overmolded M12 connectors
Specifications
- Connector Type
- M12, eight-pinM12, five-pin
- Total Length
- 25.4 cm
(10.0 in.)
