AM16/32

16 or 32 Channel Relay Multiplexer
AM16/32

AM16/32

End of life

16 or 32 Channel Relay Multiplexer

No longer available to order

This product is retained for service, documentation, and compatibility information.

Replaced by

  • AM16/32B

    16- or 32-Channel Relay Multiplexer

Model:
AM16/32
Item Number:
AM16/32

Overview

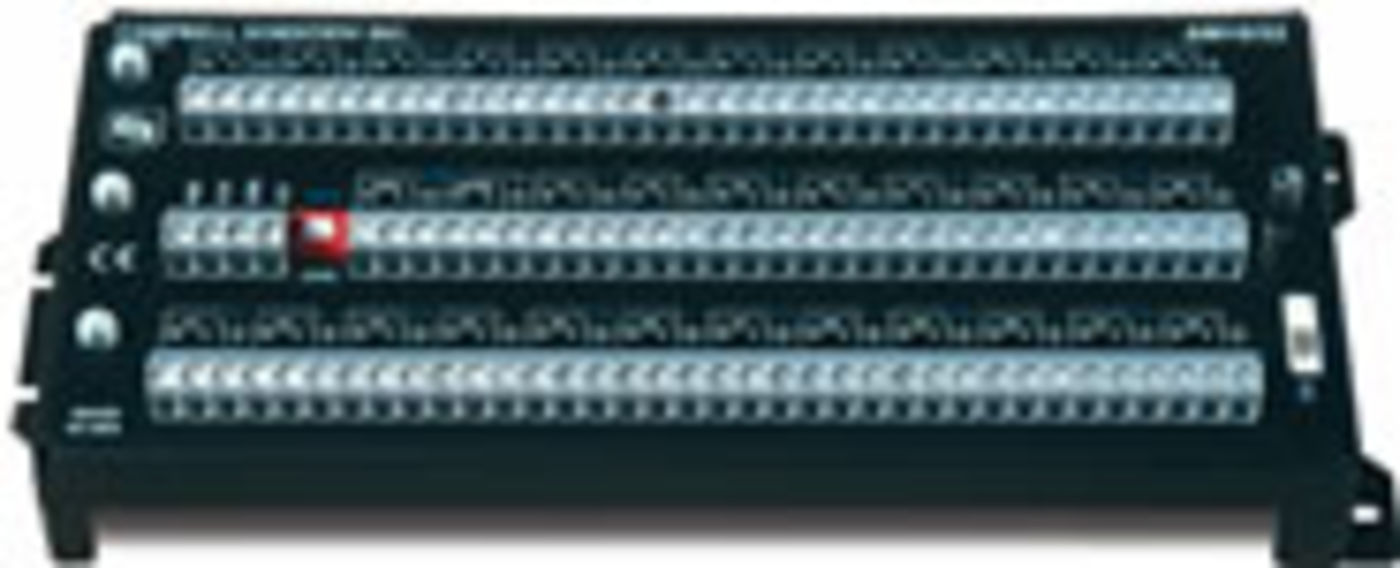

The AM16/32 increased the number of sensors that could be measured by a Campbell Scientific data logger. The AM16/32 sequentially multiplexed 16 groups of four lines (a total of 64 lines) through four common (COM) terminals. Alternately, a manual switch setting (switch is surrounded by red border in the image) allowed the AM16/32 to multiplex 32 groups of two lines (also a total of 64 lines) through two COM terminals. Depending on sensor type, the AM16/32 typically multiplexed 16, 32, or 48 sensors.

Similar Products

(1)

Compatibility

A series of data logger instructions control the AM16/32 operation (measurement instructions that are repetitive are generally contained within a programming loop; in CRBasic data loggers, this functionality is available in the SubScan instruction).

Short Cut software (available at no charge from our website) supports simple programming and generates wiring diagrams for AM16/32 applications; early versions of Short Cut did not support multiplexers.
