CPEC306

33384

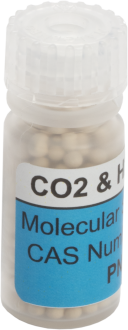

EC155 Replacement Molecular Sieve Bottles

The 33384 contains two desiccant/scrubber bottles utilizing a non-hazardous molecular sieve. Each bottle contains necessary chemicals and membrane filters for scrubbing CO2 and water vapor from the gas analyzer housing. Empty chemical bottles should be disposed of according to local and federal regulations. SDS (Safety Data Sheet) forms for the chemicals are included in the EC155 manual.

28902

Spare Sonic Wicks Kit

The Spare Sonic Wicks Kit includes three upper transducer wicks, three lower transducer wicks, and a wick-installation tool.

34007

CPEC300-Series Replacement Auxiliary Feed through 2-inch Cap with Screw

This replacement part is for any lost or broken feedthrough cap that comes with the CPEC306. The 34007 includes the cap and a screw to secure the cap to the CPEC306 main enclosure.

42815

Four-Unit Desiccant Bags (quantity of 10)

The 42815 includes 10 large, four-unit desiccant bags, used to absorb humidity within enclosures. Multiple packs are recommended for customers who need to desiccate multiple enclosures or systems.

28878

Replacement Enclosure Humidity Indicator Card

The 28878 is a replacement humidity indicator card. It provides a visual reference of humidity level inside the enclosure.

30028

Replacement Lithium Battery

The 30028 fits inside a CR6-series datalogger. This lithium battery powers the clock and SRAM when external battery power, a charging source, or a USB power source is not connected. The 30028 is a 3.6 Vdc, 2.4 Ah, AA size cell. The 30028 needs to be periodically replaced.

8125

Flat-Bladed Screwdriver, 2.5 mm Blade x 50 mm Shaft

The 8125 is a small, flat-bladed screwdriver that is extremely useful for opening the guillotine terminals on our dataloggers and measurement control devices.

26563

USB Data Cable, Type A Pin (Male) to IP68 Panel Type Mini-B Pin (Male), 4.5 m

The 26563 cable is 4.5 m long. It may be purchased to replace a lost or damaged cable for EC100s that have a plastic USB connector. If the EC100 has a metal USB connector, order the 30179 replacement cable instead.

30179

USB Data Cable, Type A Male to Type Mini-B Male, IP68, 5 m

The 30179 cable is 6 ft long. It may be purchased to replace a lost or damaged cable for EC100s that have a metal USB connector. If the EC100 has a plastic USB connector, order the 26563 replacement cable instead.

27555

USB 2.0 Cable, Type A Pin (Male) to Micro B Pin (Male), 6/6.5 ft

The 27555 is a USB Type A to Micro B, pin (male)-to-pin (male) cable, 6 to 6.5 ft long. It connects devices using the Micro B interface to a USB port on a computer.

32203

EC155 Replacement Vortex Filter Kit

The 32203 is a replacement in-line filter kit for the EC155 heated vortex. The kit includes a 25 µm filter and new ¼ in. Swagelok® nuts.

560

Screw #10-32 x .312 Pan Phillips

The 560 screw is used to attach a backplate to the inside of an enclosure.

33241

Replacement Pump Kit for CPEC200/300 or AP200

The 33241 is the replacement for the CPEC306 pump. As of January 2024, this pump's tachometer has a different reading (two pulses per revolution) than the previous replacement pump (one pulse per revolution) and requires a program update to output the correct calculated sample flow rate. Please contact Campbell Scientific for assistance on code modifications.

27153

EC155 Replacement Carrying Case with Foam Insert

The 27153 replaces a damaged EC155 carrying case and includes a foam insert. The carrying case may also be ordered as a separate item if it wasn't ordered initially with the EC155.

31461

CSAT3A Replacement Carrying Case with Foam Insert

The 31461 facilitates transporting the CSAT3A from site to site. The 31461 is offered as a replacement item for customers who do not have the foam that originally shipped with the CSAT3A.

33434

CSAT3A Replacement Carrying Case without Foam

The 33434 is a carrying case without foam inserts that facilitates transporting the CSAT3A. The 33434 is intended for customers who already have foam inserts that were shipped with their CSAT3A.

28640

Replacement CR6 18-Position Universal Terminal

The 28640 universal terminal connector is shipped attached to our CR6-series dataloggers. This lockable connector provides screw terminals for connecting digital or analog sensor or control wires to the CR6.

25600

Replacement CR6 12-Position Control Terminal

The 25600 control terminal connector is shipped attached to our CR6-series dataloggers. This lockable connector provides screw terminals for connecting digital sensor, general I/O, and control wires to the CR6.

27651

Replacement CR6 Power Connector

The 27651 power connector is shipped attached to our CR6-series dataloggers. This green, removable connector provides screw terminals for connecting the wires of a 12 V battery and/or a 16 to 32 Vdc charging source, such as a power converter or solar panel, to the CR6.

26570

EC155 Mounting Platform

The 26570 is required to mount the EC155 closed-path gas analyzer and the CSAT3A sonic anemometer head to a mounting structure.

CM250

Leveling Mounting Kit

The CM250 is a leveling mount kit for attaching the EC155 to a crossarm.

16005

2.4 GHz 0 dBd Omnidirectional 1/2 Wave Whip Antenna

The 16005 is a unity gain (0 dBd), 1/2 wave whip, omnidrectional antenna that features an articulating knuckle joint for easy orientation, weatherized jacket for outdoor applications, and internal counterpoise for ground plane independence.

27008

EC155 Foam Case Set

The EC155 Foam Case Set is typically ordered as a replacement part for the foam set that came with the original EC155. The foam set is designed to be used in either the EC155 carrying case or a cardboard box. This foam set protects the EC155 and its parts when travelling with the instrument.

31693

Heated Vortex Intake for the EC155

The EC155 Heated Vortex Intake is designed to separate particulates from the sample flow and reduce condensation. This newer vortex intake replaces the old vortex intake design that was susceptible to cracking near the intake. While the cracking on old vortex intakes is just cosmetic and does not affect measurements, users may want to replace their old intake with this new one.

Note: EC155 units that were shipped after March 29, 2018, have the new vortex intake already. The 31693 is intended for customers with an older EC155 unit.

44299

Replacement Sonic Head for CSAT3A

This sonic anemometer head is similar to the sensor head from the CSAT3 sonic anemometer, but its cable is modified to connect to the EC100 electronics.

27332

EC155, CPEC200, and CPEC3XX Calibration with Zero and Span

The 27332 provides a calibration with zero and span. When drift between zero and span checks seems unstable, or when diagnostic output indicates a problem, the instrument should be sent in for a full factory calibration with zero and span. An RMA is required.

27333

EC155, CPEC200, and CPEC3XX Zero and Span

The 27333 allows customers to send their EC155 or CPEC306 to Campbell Scientific and have Campbell Scientific perform a zero and span; an RMA (Return Material Authorization) is required. The zero and span should be done when ambient conditions change significantly (i.e., seasonally).

38944

Gas Analyzer Inspection, Diagnosis, and Evaluation

The 38944 service is for Campbell Scientific gas analyzers (EC150, EC155, and IRGASON) that are sent in for repair service, but, after diagnosis, it is determined that the analyzer cannot be repaired or calibrated, or repair is not required. This service fee covers the required analyzer testing for the evaluation.
