CS125

Present Weather and Visibility Sensor
CS125

CS125

Orderable

Present Weather and Visibility Sensor

Pricing

Request a quote Have pricing access? Sign in

Configuration

Select a configuration to add to your quote

Model:
CS125
Item Number:
CS125
Warranty:
2 years

Overview

The CS125 is an infrared forward-scatter visibility and present weather sensor for stand-alone use or with automatic weather stations including those for road, marine, and airport applications. The CS125 has an attached 5 m (16.4 ft) cable and DB9 connector.

Learn more about our CampbellAero™ Automated Weather Observing System (AWOS) Solution and our CampbellAero Software.

Key Advantages

Unrivaled Performance
Ideal for transportation applications

Technical Description

The CS125 uses the well-established forward scatter system for visibility measurement, using a 42° scatter angle, which gives accurate estimates of Meteorological Observable Range (M.O.R.) for fog and snow.

It identifies precipitation particles from their scattering properties and fall speeds, and combines this with a temperature measurement to identify the weather type. It has downward-pointing optics that reduce the risk of contamination of the optics and blockage with snow. Interference to the sample volume from the sensor by flow distortion or heat is minimized.

It also provides reliable present weather information in the form of SYNOP codes, including information on the intensity of precipitation. Accumulation can also be reported.

The CS125 uses continuous high-speed sampling to reduce errors during mixed-weather events and events that return intermittent signals, such as rain and hail, while still providing reliable readings during more stable events, such as fog and mist. The CS125 has high immunity to interference from the visible and infrared warning lights used to mark obstructions, such as wind turbines.

The sensor can be set to a lower sampling frequency to save power, if required.

The CS125 incorporates low-power dew prevention heaters, as well as higher-power anti-icing heaters for the hoods as standard. These heaters are automatically controlled to ensure operation in all weather, or they can be disabled individually to save power.

The CS125 continuously monitors its own status and will report internal faults and contamination or blockage of the sensor lenses. It also has two user-configurable alarm outputs that can be used to drive audio or visual alarms using solid-state relays.

The CS125 is certified by Deutscher Wetterdienst as suitable for use to control wind turbine obstruction light systems as specified by 506/04, General Administrative Rules for the Identification of Aircraft Obstructions.

Benefits

  • High performance sensor at a competitive price
  • Sensor design minimizes airflow disruption at measurement volume
  • Simple field calibration using optional calibration kit
  • Low power - suitable for remote application
  • Automatic status check for faults or window contamination
  • Incorporates automatic dew and hood heaters for all-weather operation
  • Type certified for aviation use by the German Meteorological Service, Deutscher Wetterdienst (DWD)

Specifications

Operational

Maximum Reported Visibility
100 km

(62.1 mi)

Minimum Reported Visibility
5 m

(16.4 ft)

Resolution
1 m

(3.28 ft)

Outputs
Present and past weather: identifies as standard mist, fog, drizzle, freezing drizzle, drizzle and snow, rain, freezing rain, rain and drizzle, rain and snow, and snow.

57 SYNOP present weather codes and associated METAR and NWS present weather codes - hail detection; past weather codes.

Accuracy
±8%

(up to 600 m [1968.5 ft])

±10%

(600 to 10,000 m [1968.5 to 32,808.4 ft])

±15%

(10,000 to 15,000 m [32,808.4 to 49,212.6 ft])

±20%

(above 15,000 m [49,212.6 ft])

Precipitation Detection Sensitivity
0.05 mm/h
Accumulation Reporting Range
0 to 999.9 mm

(0 to 39.37 in.)

Accumulation Accuracy
±15%

(against factory calibration standards in the laboratory, for liquid precipitation)

Accumulation Resolution
0.1 mm

(0.0039 in.)

Rain Intensity Range
0 to 999.9 mm/h

(0 to 39.37 in./h)
(The maximum intensity reported is dependent on the mixture of precipitation falling.)

Intensity Accuracy
±15%

(against factory calibration standards in the laboratory, for liquid precipitation)

Intensity Resolution
0.01 mm/h

(0.00039 in./h)

Operating Temperature Range
-25° to +60°C

(standard)

Extended Operating Temperature Range
-50° to +70°C or -40° to +70°C
Operating Humidity
0 . . . 100%
Operating Wind Speed
Up to 60 m/s
Sensor Sealing
Rated to IP66
Total Unit Power
Less than 3 W while sampling continuously

(including dew heaters)

Mechanical

Material
Stainless steel and hard-anodized aluminum powder-coated
Mountings
Stainless-steel clip on V-bolt mounting to pole with diameter of 32 to 52.5 mm

(1.26 to 2.07 in.)

Mounting Pole
An optical mounting pole is available to place the sample volume at 1.5 m (4.9 ft), as recommended by the WMO.
Frangible Mast
Frangible masts are available to customer requirements to meet ICAO recommendations (typically placing the sample volume at 2.5 m [8.2 ft]).
Visibility Sensor Dimensions
540 x 640 x 246 mm

(21.26 x 25.2 x 9.7 in.) including mount

Cable Length
5 m

(16.4 ft)

Sensor Weight
~3 kg

(6.61 lb) dependent upon mounting system

Electrical

-NOTE-
Lower power states can be achieved by less frequent sampling and remote control of heaters.



Optional power supplies with battery backup available.

Connectors in place of flying leads are available.

A low-voltage shutdown level can be set to prevent backup batteries from being damaged.

Electronics Supply Voltage
7 to 30 Vdc
Hood Heater Supply Voltage
24 V

(dc or ac)

Hood Heater Power
2 x 30 W

(total of 60 W)

Dew Heater Power
2 x 0.6 W

(total of 1.2 W)

Interface

Serial Interface
RS-232 or RS-485
Serial Data Rates
1200 to 115,200 bps

(38,400 bps default rate)

Alarm Outputs
2 x 0 to 5 V outputs, 32 mA (max)

Optical

-NOTE-
Lens contamination circuity monitors both the source and detector lenses for contamination/blockage at 1 s intervals.



The sensor can be configured to adjust calibration for low to moderate window contamination.

Light source stability control ensures stable operation through variations in temperature and with sensor aging.

Corrected at 1 s intervals.

Emitter Light Frequency
850 nm

Common Accessories

(10)

Ships With

(2)
  • 5 m Sensor Cable from original mfg
  • 5 m Hood Heater Cable from original mfg

Similar Products

(2)

Compatibility

Compatible Products

(2)

Related Resources

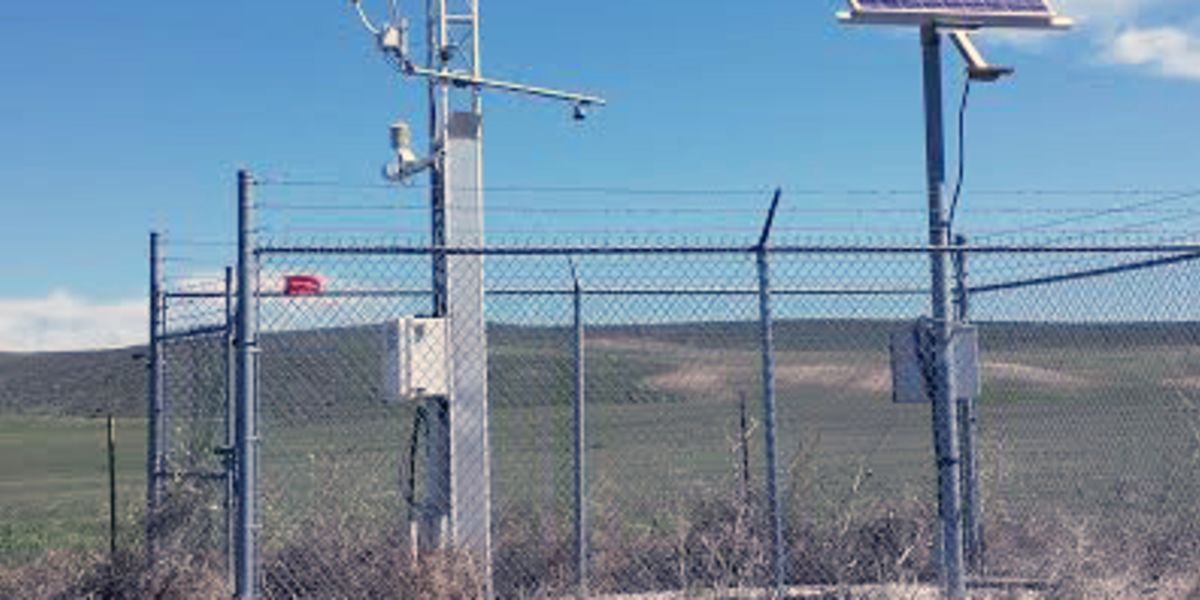

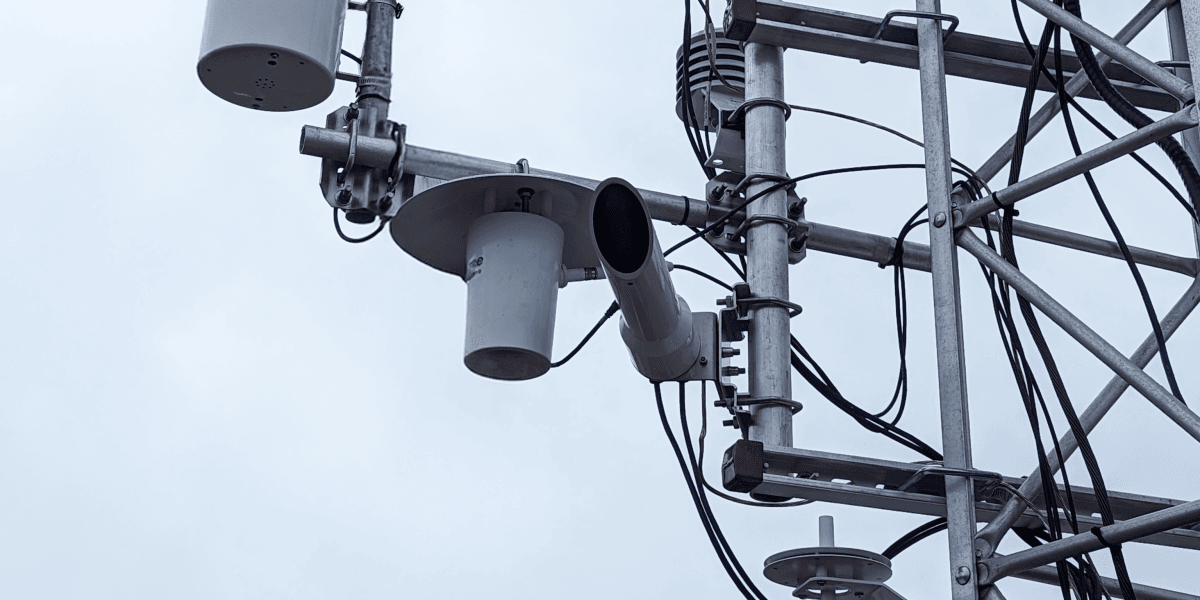

Case Studies
