8062
8062
Orderable12 Ah 12 V Sealed Rechargeable Battery without Mounting Hardware for BP12
Overview

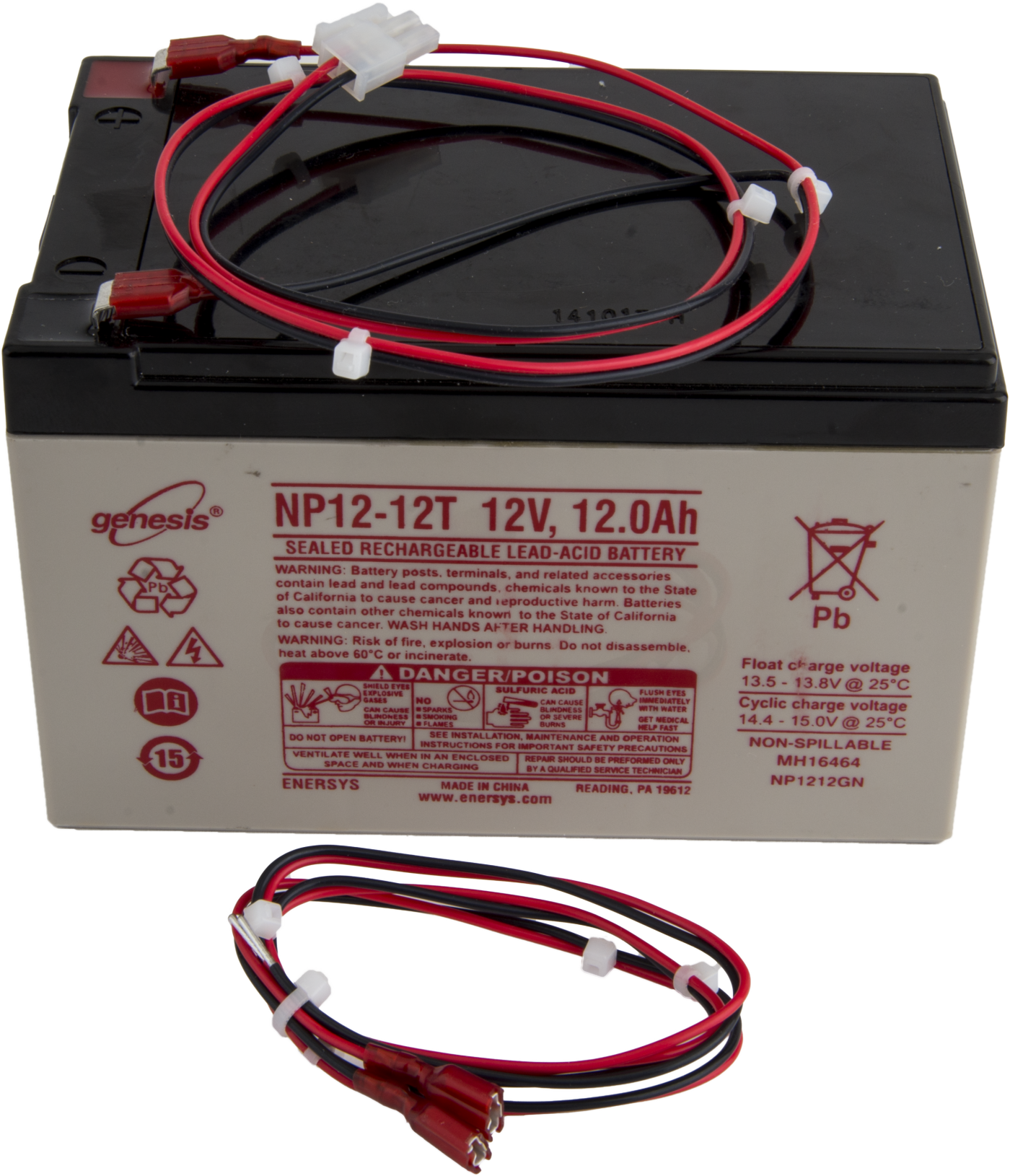

The 8062 is the BP12's 12 Ah 12 V sealed rechargeable battery, but without the mounting hardware that attaches the battery to an enclosure backplate. This product is available for customers who need a replacement battery, are not using an enclosure, or will be using the 27758 secured mounting kit or a custom user-supplied mounting bracket.
Technical Description
The 8062 includes a 24 in. attached cable that terminates in a connector for attaching the battery to a CH150 or CH200 regulator. The 8062 also comes with a 24 in. cable for use with the CR6 datalogger or other products that need a pigtail termination instead of a white connector. (This cable is bagged and taped to the battery.) Switching the standard cable for the pigtail cable is easily accomplished by the user.
Specifications
- Dimensions
- 15.24 x 10.8 x 10.16 cm
(6.0 x 4.25 x 4.0 in.)
- Weight
- 3.69 kg
(8.14 lb)
Other Accessories
(2)27758
BP12 Secured Mounting Kit
The 27758 mounting bracket kit fastens the 8062 battery to an enclosure backplate. The 8062/27758 combination is used instead of BP12 when more secured mounting is required.
Orderable33446
BP12 Mounting Kit
The 33446 kit provides the necessary mounting hardware for users who would like to supply their own 12 Ah 12 V sealed rechargeable battery instead of using the BP12 battery. The 33446 kit can also be used with the 8062 (BP12 battery without mounting hardware).
Orderable
Replacement Parts
(2)30401
BP12 and BP24 Battery Cable with Pigtail
This 24 in. battery cable came bagged and taped to the BP12 battery. One end terminates in clips to connect to the battery's post. The other end terminates in stripped pigtails to be connected to a CR6 datalogger, a CR200X-series datalogger, or other products needing a pigtail connection to a battery. The 30401 may be purchased to replace a lost or damaged cable, or it may be purchased by those supplying their own batteries locally.
Orderable34031
BP12 and BP24 10 A Battery Cable
This 24 in. battery cable comes attached to the BP12 and BP24 batteries. One end terminates in clips to connect to the battery's post. The other end terminates in a white connector to plug into a CH150, CH200, CH100, PS150, PS200, or PS100.
Orderable
