LP02
LP02
End of lifePyranometer
No longer available to order
This product is retained for service, documentation, and compatibility information.
Replaced by
- LP02-L
Pyranometer
- Model:
- LP02
- Item Number:
- LP02
Overview
The LP02 pyranometer measures solar radiation in the full solar spectrum range. It is an ISO second-class pyranometer whose millivolt signal is measured directly by a Campbell Scientific data logger. The LP02 has a 16-ft cable, and the LP02-L cable length is user-specified. Otherwise they are the same sensor.

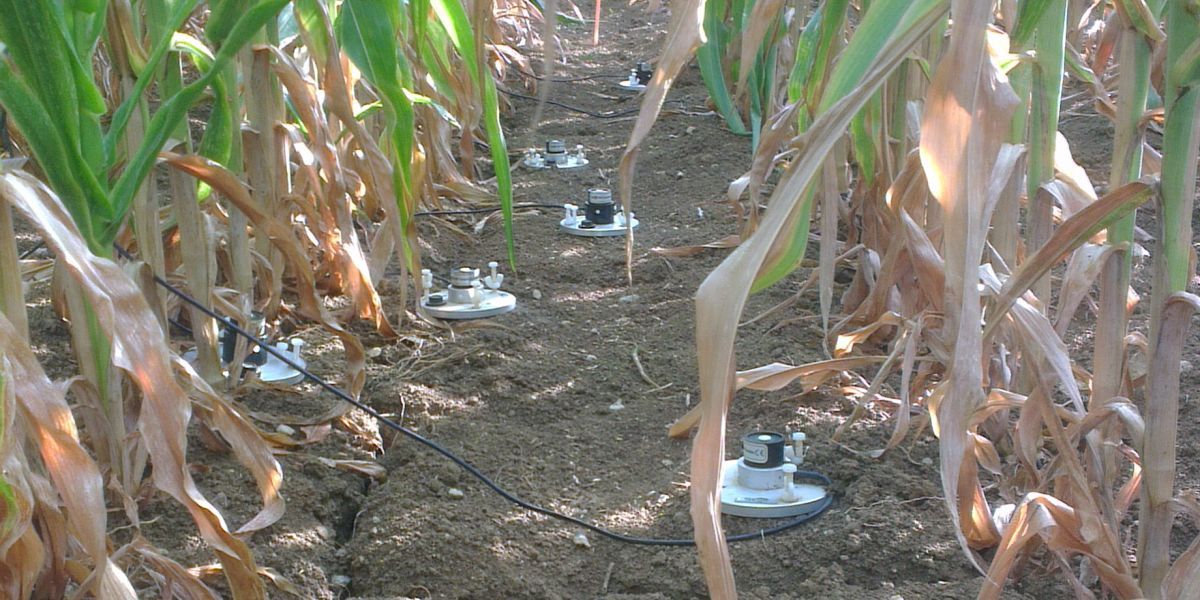

Solar radiation is measured with a high quality blackened thermopile protected by a dome. The blackened thermopile provides a flat spectral response for the full solar spectrum range, which allows the LP02 to be used under plant canopies or lamps, when the sky is cloudy, and for reflected radiation measurements.
Benefits
- Compatible with most Campbell Scientific data loggers
Specifications
- Spectral Response Waveband
- 305 to 2800 nm
- Maximum Irradiance
- 2000 W/m2
- Sensitivity
- 15 µV/W/m2
Accessories
(1)
Ships With
(3)- Bolts for mounting from original mfg
- WRR & ISO 9847 Traceable Calibration Certificate
- Nuts for mounting from original mfgQty 2
Compatibility
Mounting
The LP02 includes a bubble level and three adjusting leveling screws, which allow the sensor to be leveled without using a leveling base. The CM225 Solar Sensor Mounting Stand is used to attach the sensor to a mast, crossarm, or pole (1.0 inch to 2.1 inch outer diameter). The CM225 consists of rectangular plate, mounting bracket, U-bolts, washers, lock washers, and nuts. The LP02 should be mounted away from all obstructions and reflective surfaces that might adversely effect the measurement.
