CS500-L
CS500-L
End of lifeTemperature and Relative Humidity Probe
Overview
The CS500 was a modified version of Vaisala's 50Y Humitter. The probe measured temperature with a 1000 Ohm platinum resistance thermometer (PRT) and relative humidity (RH) with a 50Y Intercap humidity sensor. The CS500 was cabled with our pn 9720 cable.
Specifications
- Accuracy
- ±3%
(over 10 to 90% RH)
±6%(over 90 to 100% RH)
- Operating Temperature Range
- -40° to +60°C
- Diameter
- 1.2 cm
(0.47 in.)
- Length
- 6.75 cm
(2.66 in.)
- Weight
- 0.05 kg (0.1 lb) with 1.83-m (6-ft) cable
Ships With
(1)- Instruction Manual
Compatibility
Mounting
The CS500 is typically housed in a 41303-5A 6-plate naturally aspirated shield.
It may also be housed in a 41003-5 10-plate shield if additional hardware is used. A 41322 Adapter Plate allows the HMP50 to be mounted in the lower part of the 41003-5 10-plate shield. Alternatively, a 41381 extension tube and the 6637 split nut plug can be used to mount the CS500 in a higher part of the 41003-5; the pn 41381 cable is also required.
Both the 41303-5A and the 41003-5 attach to a crossarm, mast, or user-supplied pipe with a 1.0-in. to 2.1-in. outer diameter.
Related Resources

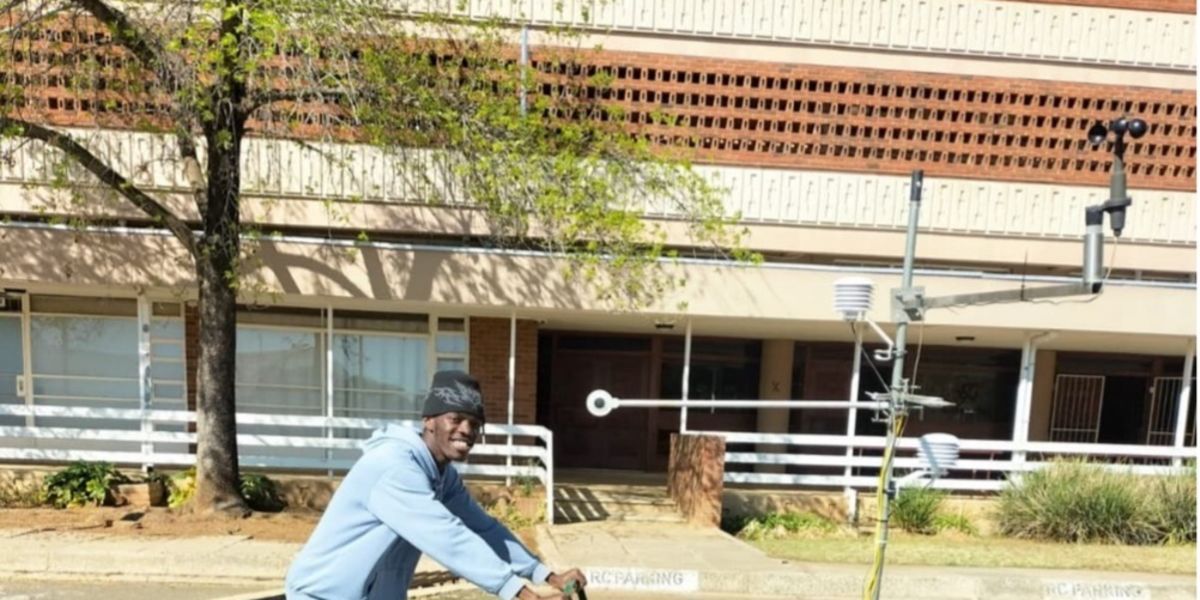

Case Studies
Documents
Services Available
- Repair
- No
- Calibration
- No
- Free Support
- No
