Granite 9

Name: Granite 9
Brand: Campbell Scientific
SKU: GRANITE9
Availability: InStock

High-Capacity, High-Speed Data Acquisition System

Granite 9

OrderableConfigurable

High-Capacity, High-Speed Data Acquisition System

Pricing

Configuration

Standard DutyGRANITE9-SD
Extended DutyGRANITE9-XD

Qty

Select a configuration to add to your quote

Model:: Granite 9
Item Number:: GRANITE9
Warranty:: 3 years

Overview

The Granite™9 and Granite™10 are the most computationally powerful data acquisition devices from Campbell Scientific. As an all-digital measurement and control DAQ, the Granite 9 is designed as the core of the data acquisition network, integrating with all GRANITE™ measurement modules, including the Volt 108, Volt 116, Temp 120, and VWire 305.

Key Advantages

Rugged, All-Digital Measurement and Control DAQ for High-Speed Applications

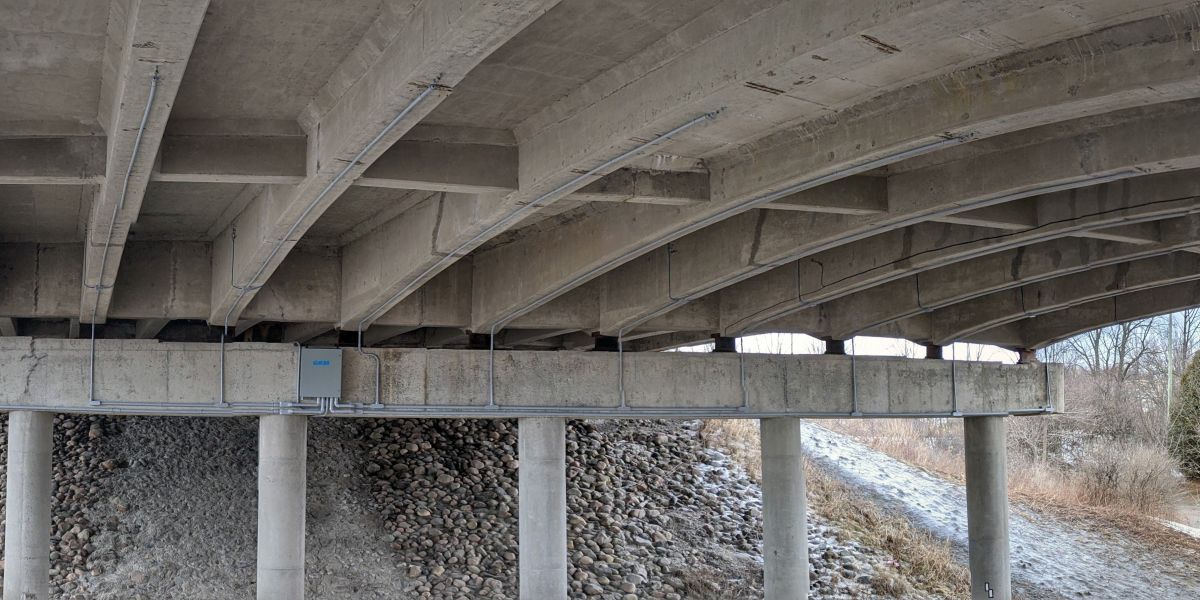

Designed for structural health and environmental monitoring projects where multiple high-speed channels with expandable capabilities may be required

Technical Description

The Granite 9 enables you to perform the following:

Standard measurement functions
Advanced math and processing functions
Control functions

A complete GRANITE system installation may include the following components:

Granite™Chassis
Granite 9
Power source (mains or solar)
Software

Benefits

Traditional network connections via Ethernet port
EPI port switch for high-speed connection to all GRANITE measurement modules
Onboard storage of streaming data with 2 GB of DDR3 SDRAM and a 64 GB solid-state hard drive (SSD)
Built-in GPS for network synchronization

Specifications

-NOTE-: Additional specifications are listed in the GRANITE 9 Specifications.
Maximum Program Scan Rate: 10 kHz
Measurement Module Synchronization: ±5 µs
(CPI)
±50 ns
(EPI)
GPS Synchronization: ±200 ns
Maximum Number of Measurement Modules: 15 + 15 + 15
Power Requirements: 9.6 to 32 Vdc
(voltage input)
10 to 18 Vdc for battery input (BAT)
Real-Time Clock Accuracy: ±3 min. per year
Operating Temperature Range: -40° to +70°C
(standard)
-55° to +85°C
(extended)
Non-condensing environment
Case Material: Stainless steel 304 and aluminum 6061
Universal Inputs: 12 individually configured inputs for analog or digital functions
Pulse Counters: 12 (U1 to U12)
Voltage Excitation Terminals: 12 (U1 to U12)
Communications Ports: Ethernet
USB Micro B
USB host
CS I/O
0 to 5 V serial
SDI-12
RS-485
RS-422
CPI/RS-232
EPI
Data Storage Ports: microSD
USB host
Digital I/O: 8 terminals (C1 to C8) configurable for digital input and output.
Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions.
Analog Voltage Accuracy: Accuracy specifications do not include sensor or measurement noise.
±(0.04% of measurement + offset) at 0° to 40°C
±(0.06% of measurement + offset) at -40° to +70°C
±(0.08% of measurement + offset) at -55° to +85°C
(extended temperature range)
ADC: 24-bit
Internet Protocols: Ethernet, PPP, RNDIS, ICMP/Ping, Auto-IP (APIPA), IPv4, IPv6, UDP, TCP, TLS (v1.2), DNS, DHCP, SLAAC, Telnet, HTTP(S), SFTP, FTP(S), POP3/TLS, NTP, SMTP/TLS, SNMPv3, CS I/O IP
Communication Protocols: CPI, EPI PakBus, PakBus Encryption, SDM, SDI-12, Modbus RTU / ASCII / TCP, DNP3, custom user definable over serial, UDP, NTCIP, NMEA 0183, I2C, SPI
Warranty: 3 years standard (against defects in materials and workmanship)
Optional: An additional 2 years (against defects in materials and workmanship), bringing the total to 5 years
Battery-backed SRAM for CPU Usage & Final Storage: 4 MB
Data Storage: 4 MB SRAM + 128 MB NOR flash
(Storage expansion of up to 16 GB with removable microSD flash memory card.)
64 GB SSD
Idle Current Drain, Average: Assumes 12 Vdc on BAT terminals; add 2 mA if using CHG terminals.
< 1 mA
Active Current Drain, Average: Assumes 12 Vdc on BAT terminals; add 2 mA if using CHG terminals.
~6 W
255 mA input
(24 V input)
495 mA input
(12 V input)
Static Vibrating-Wire Measurements: Not supported
Dimensions: 21.4 x 12.0 x 5.0 cm
(8.4 x 4.7 x 2.0 in.)
Additional clearance required for cables and leads.
Weight: 1.0 kg
(2.2 lb)
