Granite Volt 116
Granite Volt 116
Orderable16- or 32-Channel 5V Analog Input Module
Pricing
Request a quote Have pricing access? Sign in
Configuration
- Standard DutyVOLT116-SDPart Number: 34858
- Extended DutyVOLT116-XDPart Number: 34859
Select a configuration to add to your quote
- Model:
- Granite Volt 116
- Item Number:
- VOLT116
- Warranty:
- 1 year
Overview
The Granite™ Volt 116 easily expands the channel count on your data acquisition system. It has 16 differential or 32 single-ended input channels, as well as four excitation channels. It provides programmable, precision excitation for standard sensor measurements and power outputs for controlling sensors and peripherals. The Volt 116 features a 24-bit, analog-to-digital converter with low-noise performance for superior analog measurements.
Key Advantages
Ideal for concentrated or distributed measurements
Benefits
- 24-bit ADC and low-noise inputs for increased measurement quality
- Distributed data acquisition
- Channel count expansion via the CPI bus on Campbell Scientific data loggers
- Easier to program than traditional multiplexers
- Programmable noise rejection
- CANbus 2.0 A/B output available with the Extended Duty (-XD) version
- USB 2.0 interface for PC-based operation with Campbell Scientific Surveyor software
Specifications
- Mounting
- Standard 1-in. grid
(DIN rail mounting available)
- Operating Temperature Range
- -40° to +70°C
(standard)
-55° to +85°C(extended)
- Power Requirements
- 9.6 to 32 Vdc voltage
- Accuracy
- ±(0.04% of reading + offset)
0° to 40°C
±(0.06% of reading + offset)-40° to +70°C
±(0.08% of reading + offset)-55° to +85°C
- Number of Channels
- 16 differential or 32 single-ended inputs
- Analog Inputs
- 32 single-ended or 16 differential
(with ±5000 mV, ±1000 mV, ±200 mV ranges 24 bit ADC)
- Maximum Scan Rate
- 1 channel at 1 kHz16 channels at 167 Hz
- Input Range
- ±5000 mV, ±1000 mV, and ±200 mV
- Period Averaging
- Traditional period averaging on analog input channels
- CPI
- For data logger connection. Baud rate selectable from 50 kbps to 1 Mbps.
(Allowable cable length varies depending on baud rate, number of nodes, cable quality, and noise environment, but can be as long as 700 m under proper conditions.)
- USB
- USB 2.0 full speed connection available for attaching to a PC.
(Port is used to configure the module and download updates via our Device Configuration Utility.)
- Warranty
- One year against defects in materials and workmanship
- Dimensions
- 20.3 x 12.7 x 5.1 cm
(8 x 5 x 2 in.)
- Weight
- 0.9 kg
(1.95 lb)
Typical Current Drain
- Sleep
- <1 mA
- Active 1 Hz Scan
- 2 mA
(estimated)
Assumes one single-ended measurement with the first notch frequency (fN1) at 30 kHz
Note: Any sensor excitation or switched power loads will be additive to this value. - Active 20 Hz Scan
- 20 mA
Assumes one single-ended measurement with the first notch frequency (fN1) at 30 kHz
Note: Any sensor excitation or switched power loads will be additive to this value. - Active 1 kHz Scan
- 67 mA
Note: Any sensor excitation or switched power loads will be additive to this value.
Voltage/Current Excitation Outputs
- Voltage Excitation
- ±5 V
(@ 50 mA)
- Current Excitation
- ±2.5 mA
(±5 V compliance voltage)
- Number of Voltage/Current Excitation Outputs
- 4
General Purpose Outputs
- Number of SW5V Outputs
- 4
- SW5V Output Resistance
- 30 Ω
- Number of SW12V Outputs
- 2
- Typical Limit of SW12V Outputs
- 200 mA
- Minimum Limit of SW12V Outputs
- 180 mA
- Number of 12V Outputs
- 2
- Typical Limit of 12V Outputs
- 200 mA
- Minimum Limit of 12V Outputs
- 180 mA
Common Accessories
(7)35690
GRANITE Series DIN Rail Kit for 2 in. Modules
The 35690 can be purchased as an accessory to mount the 5.08 cm (2 in.) GRANITE™ modules on a DIN-Rail instead of the standard backplate mounting.
Orderable28900
CAT5e Ethernet Unshielded Cable with RJ45 Connectors, 10 ft
An RJ45 cable may be needed, and several options are available. The 28900 is one option. The 28900 is a 10 ft, unshielded, CAT5e network cable with RJ45 connectors. It is typically used to connect one of our many Ethernet-capable products to an Ethernet device or network connection.
Orderable28901
CAT5e Ethernet Unshielded Cable, RJ45 to RJ45, 50 ft
An RJ45 cable may be needed, and several options are available. The 28901 is one option. The 28901 is a 50 ft, unshielded, CAT5e cable with RJ45 connectors. It is typically used to connect CDM devices together or to a data logger. This cable can also be used to connect one of our many Ethernet-capable products to an Ethernet network connection.
OrderableHUB-CPI
8-Channel RJ45 Hub for CPI Peripherals
The HUB-CPI may be used to connect multiple CPIs in parallel together. The HUB-CPI allows eight CPI (CAN peripheral interface) devices to be connected together in parallel. Typically, this configuration includes one data logger and up to seven CDMs (Campbell distributed modules) or sensors that use CPI.
Orderable29370
CPI Network Kit
One 29370 is needed for each CPI network. Among the items included in the 29370 kit is a roll of yellow vinyl electrical tape to distinguish Ethernet cables that use CPI protocol from similar cables used for TCP/IP.
Orderable8125
Flat-Bladed Screwdriver, 2.5 mm Blade x 50 mm Shaft
The 8125 is needed if the Volt 116 is not ordered with a data logger or if the screwdriver that came with the data logger has been lost. The 8125 is a small, flat-bladed screwdriver that is extremely useful for opening the guillotine terminals on our data loggers and measurement control devices.
Orderable39177
1.67 A 24 Vdc Power Supply
The 39177 converts 100 to 240 Vac to a regulated 24 Vdc. The 39177 comes standard with a USA/Canada plug, with an option to add a kit for international use. On one end, the 39177 has a plug that inserts into a wall socket. There are several cable termination options for the other end of the cable.
Orderable
Other Accessories
(2)DAQ Case 15
Data Acquisition (DAQ) Laboratory and Field Case
The DAQ Case 15 is a cost-effective and convenient carrying case for your valuable data acquisition equipment. This case is specifically configured for GRANITE™ Data Acquisition Systems and Campbell Scientific data loggers. The DAQ Case 15 is optimized for applications that require easy transport in a lab, in the field, or for short-term deployments.
OrderableGranite Chassis
GRANITE Data Acquisition Systems Chassis
The Granite™Chassis is a platform for housing a complete GRANITE system. The Granite Chassis can hold up to eight modules, which may include the DAQ (Granite™10, Granite™9, or Granite™6), CH400, and additional GRANITE measurement modules. Portability and protection are fundamental to the design, delivering optimal system performance in demanding conditions—especially when heat must be dissipated quickly. Up to five panel faces (four top, one rear) can be customized to mount a wide variety of connectors, providing rapid connection to the DAQ system, which is ideal for time-sensitive or repetitive testing applications. As a GRANITE system scales to larger arrays of sensors and supporting GRANITE modules, several additional Granite Chassis can be daisy-chained to expand the GRANITE DAQ network. With the optional Rackmount Slide-Rail Kit, the Granite Chassis can be easily mounted in a standard four-post server rack cabinet.
Orderable
Replacement Parts
(10)505
Screw #6-32 x .375 Pan Phillips
These screws, along with the 6044 grommets, are commonly used together to secure our equipment to the backplates of our enclosures.
Orderable6044
Grommet for #6 or #8 Screw
These grommets are commonly used with the 505 screws to secure our equipment to the backplates of our enclosures.
Orderable28490
Red Wire and Black Wire Power Cable Set
The 28490 includes two wires—one red and one black. These wires differ only in their insulation color; they have the same same length (1 ft) and gage (18 AWG). The red and black wires are used to connect a Campbell Scientific power supply to a data logger. The 28490 is shipped with our power supplies and may also be purchased as a replacement part.
Orderable28898
CAT6 Ethernet Unshielded Cable with RJ45 Connectors, 6 in.
The 28898 is a 6 in., unshielded, CAT6 network cable with RJ45 connectors. It is typically used to connect CDM devices together or to an SC-CPI. This cable is also used to connect one of our many Ethernet-capable products to an Ethernet device or network connection.
Orderable28899
CAT6 Ethernet Unshielded Cable with RJ45 Connectors, 2 ft
The 28899 is a 2 ft, unshielded CAT6 network cable with RJ45 connectors. It is typically used to connect CDM devices together or to an SC-CPI. This cable is also used to connect one of our many Ethernet-capable products to an Ethernet device or network connection.
Orderable27555
USB 2.0 Cable, Type A Pin (Male) to Micro B Pin (Male), 6/6.5 ft
The 27555 is a USB Type A to Micro B, pin (male)-to-pin (male) cable, 6 to 6.5 ft long. It connects devices using the Micro B interface to a USB port on a computer.
Orderable29474
Stainless-Steel Screw #10-32 x .500 Slotted Set Cut Point
The 29474 is a ground lug with a slotted notch on its top that may be purchased to replace a lost or damaged ground lug.
Orderable30775
Terminal Connector Screw Plug for CDM-A108/16 Marked CH1-8
The 30775 may be ordered to replace a lost or damaged screw plug.
Orderable26031
Spring Plug Terminal Connector
The 26031 is a power connector that may be purchased to replace a lost or damaged connector.
Orderable30776
Terminal Connector Screw Plug for CDM-A16 Marked CH9-16
The 30776 may be ordered to replace a lost or damaged screw plug.
Orderable
Compatibility
The Volt 116 is compatible with CPI-enabled data loggers only.
Compatible Products
(3)
Related Resources
Case Studies

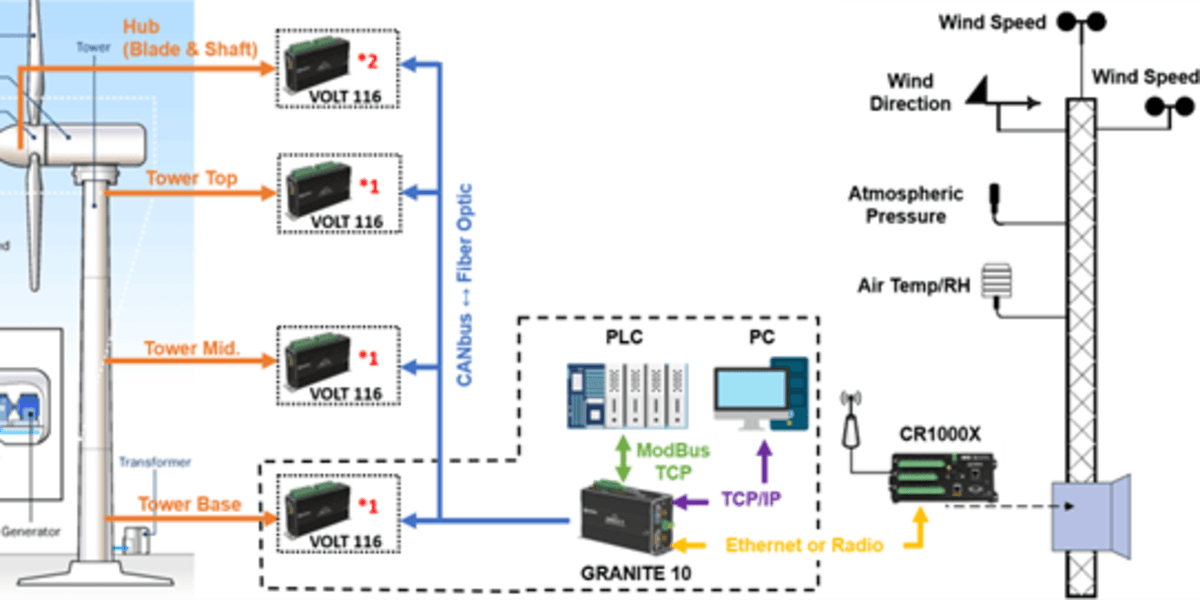

China: Driving Innovation and Sustainability
Wind turbine load monitoring
China
April 5, 2024
View
United Kingdom: Pioneering Research in Carbon Sequestration
University-based ecology and hydrology research
United Kingdom
January 26, 2024
View

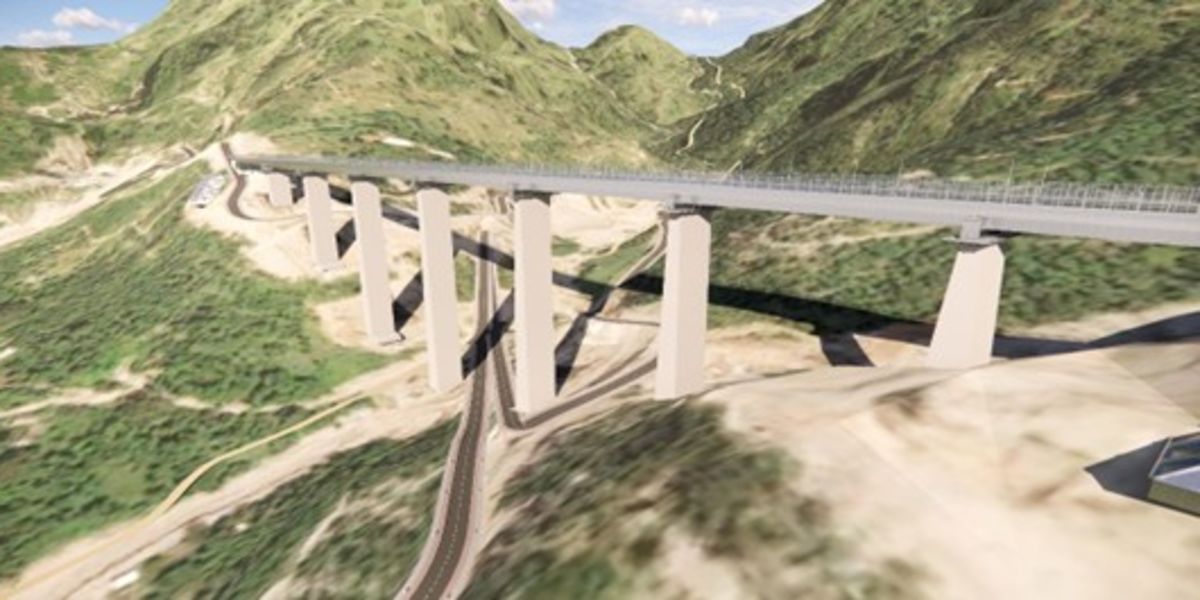

India: Long-Term Monitoring for the Himalayan Railway Bridge
